4G Wireless Long-Distance Industrial Sound & Light Alarm & Telemetry Relay Linkage System
Zero-configuration, nationwide long-distance 4G cellular strobe alarm and telemetry relay system. Pre-paired peer-to-peer cloud communication eliminates field trenching and wiring, instantly linking dry-contact switches, AC sensors, and 4-20mA analog instruments to ≥120dB rotating strobe sirens with built-in 8-hour lithium backup power.
LinkageCloud / SRE-IoT Engineering & Technical Overview
The CH-04G / LTE-1101J wireless alarm and telemetry linkage system provides industrial plants, tank farms, construction sites, and municipal utilities with an instant, long-distance audible and visual emergency warning network. Powered by 4G cellular IoT with pre-installed data communication, it enables peer-to-peer cloud linkage across unlimited distances without requiring complex network setup, RF field surveys, or communication cabling.

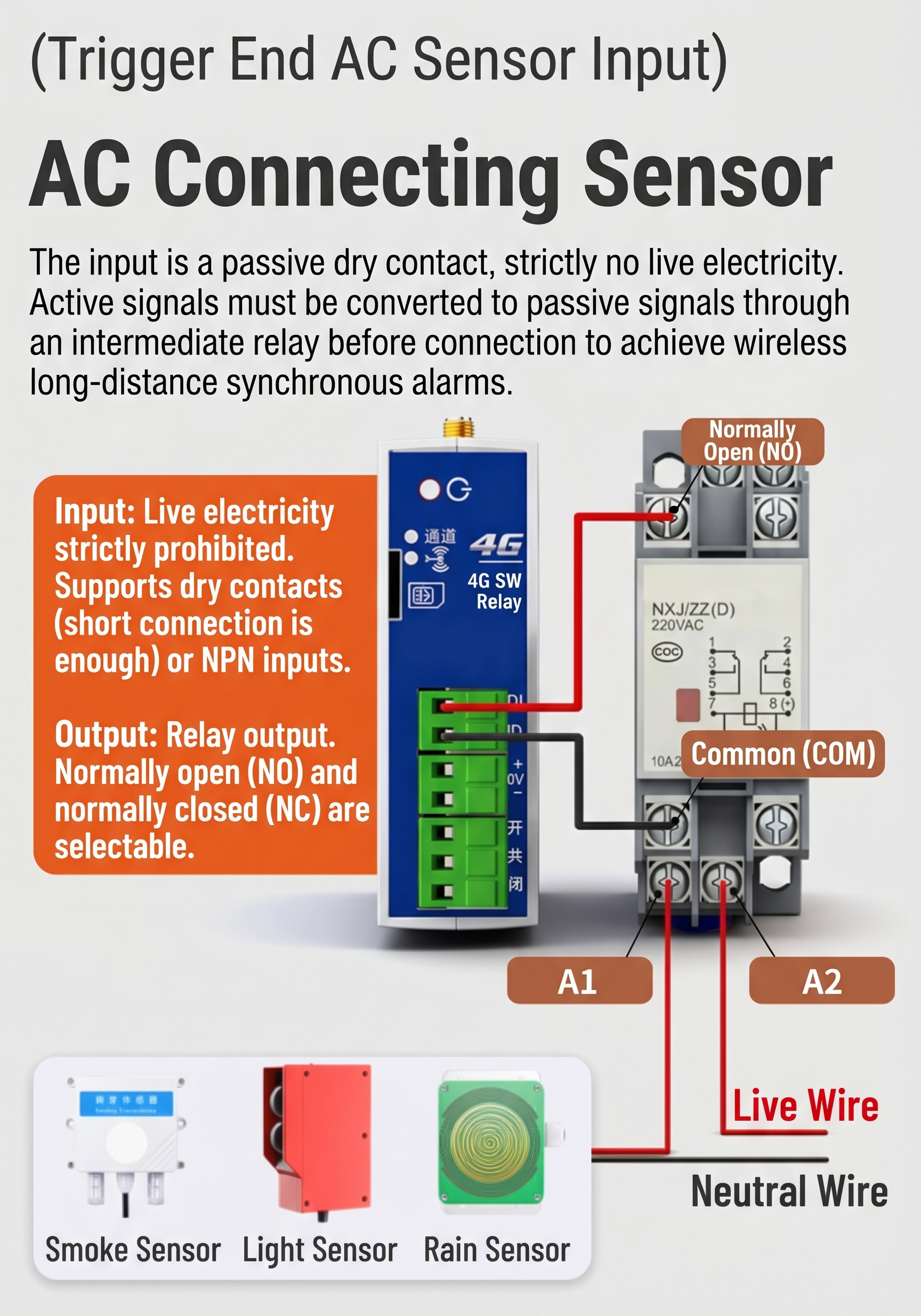

At the transmitter station, the CH-04G (U-1 Series) RTU host accepts multiple signal inputs including passive dry contacts (pushbuttons, microswitches, float switches, limit sensors), NPN transistor outputs, AC 220V power sensing via NXJ/ZZ(D) intermediate relays, and continuous analog telemetry (4-20mA / 0-10V) for liquid level, toxic gas, and wind speed thresholds. A bidirectional status-feedback LED confirms trigger reception and receiver response in real time.

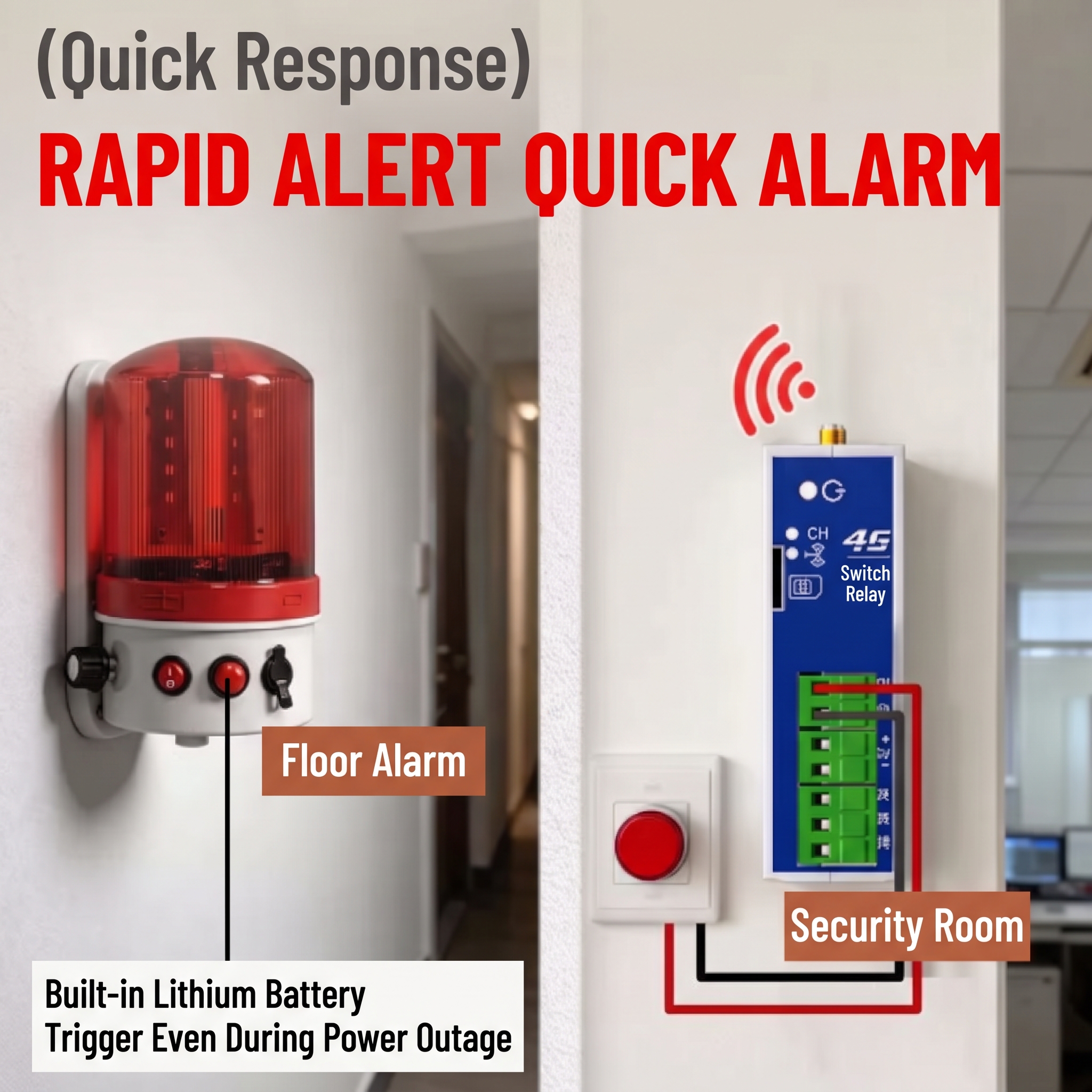

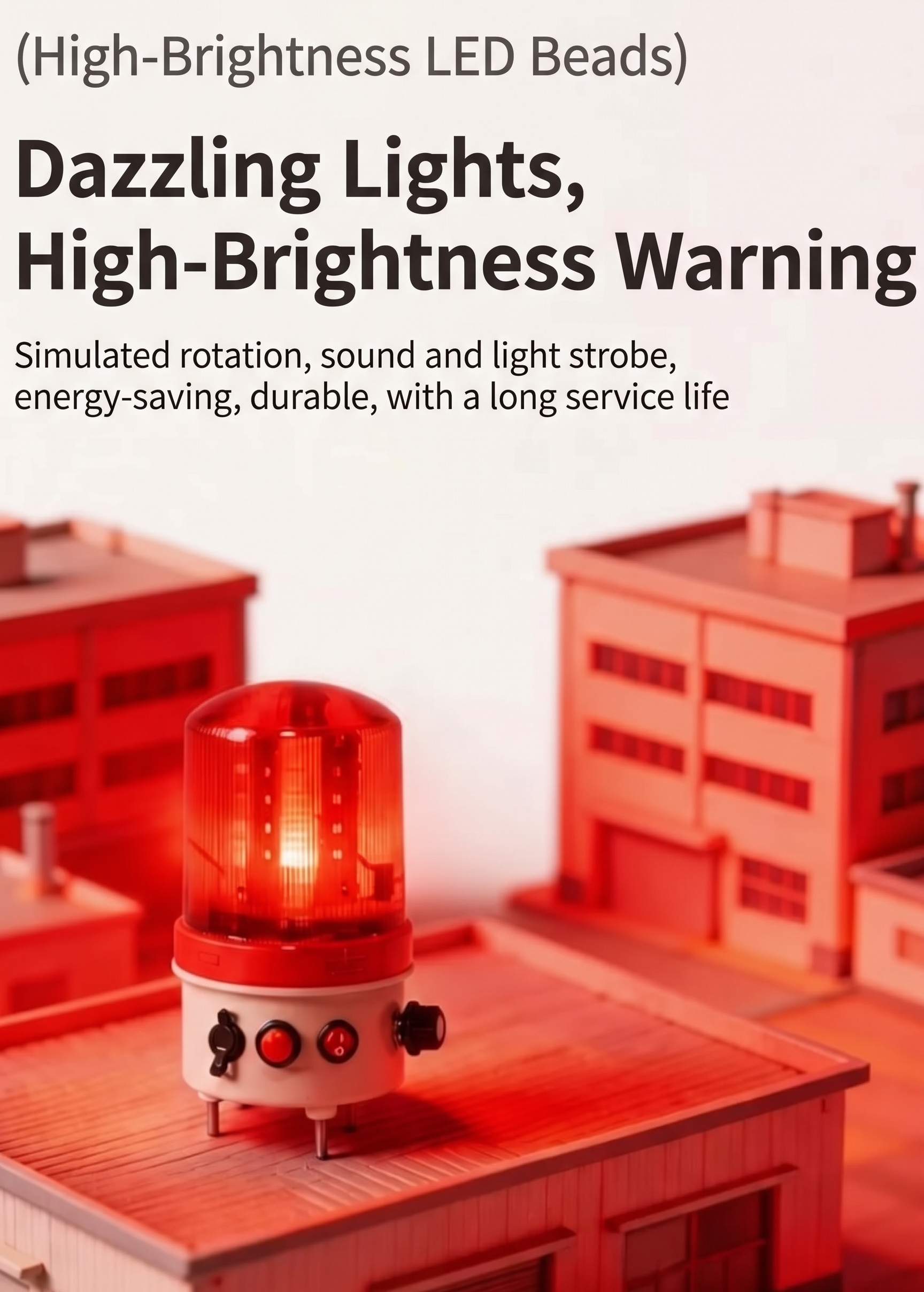

The receiving LTE-1101J strobe siren combines an ultra-bright LED array featuring high-visibility simulated motor rotation with a piercing ≥120dB acoustic horn, providing unmistakable 360° warning across loud factory floors. A built-in high-capacity lithium backup battery delivers up to 480 minutes (8 hours) of continuous emergency alarm operation and 1,560 minutes (26 hours) of standby during complete mains power outages.

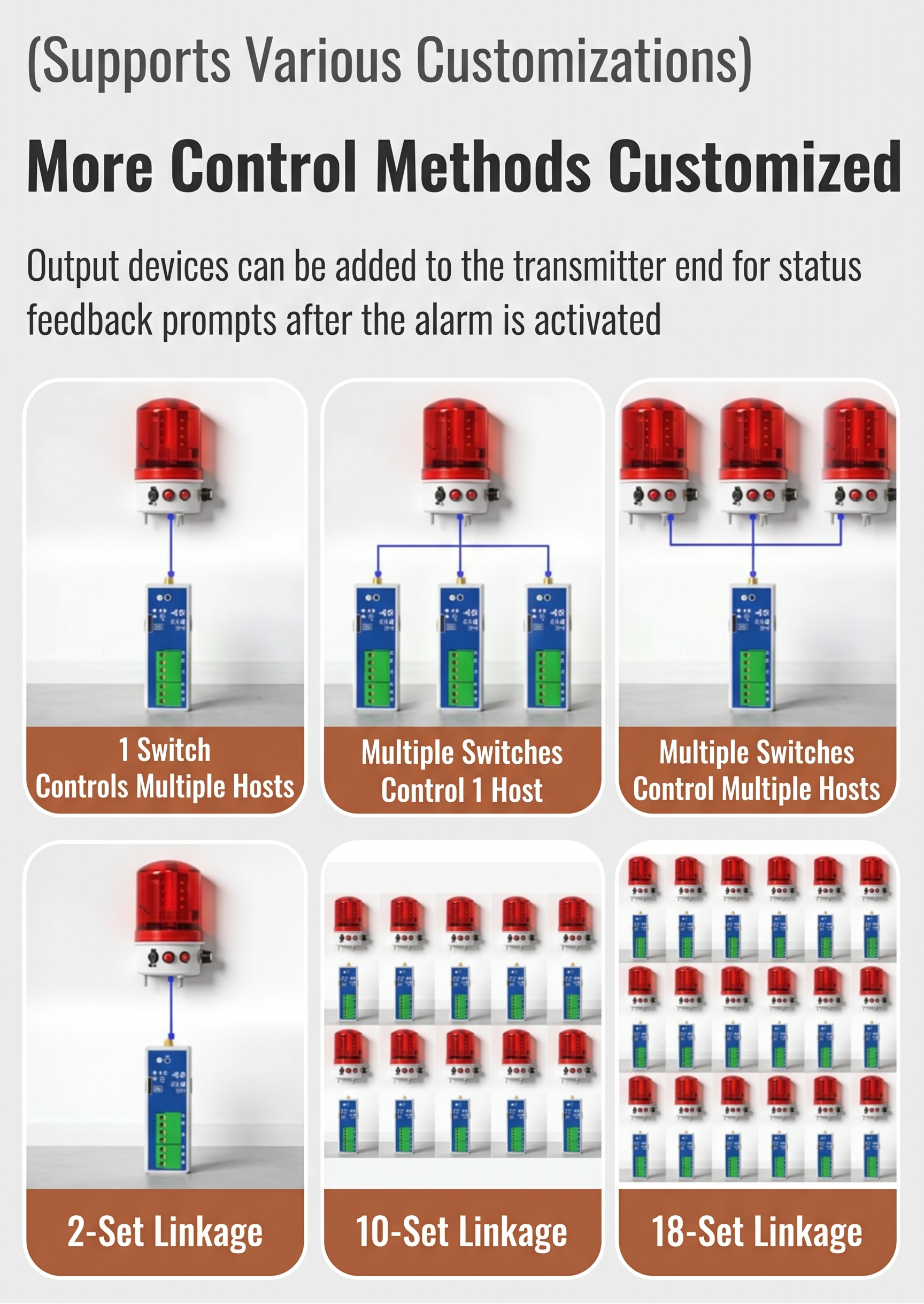

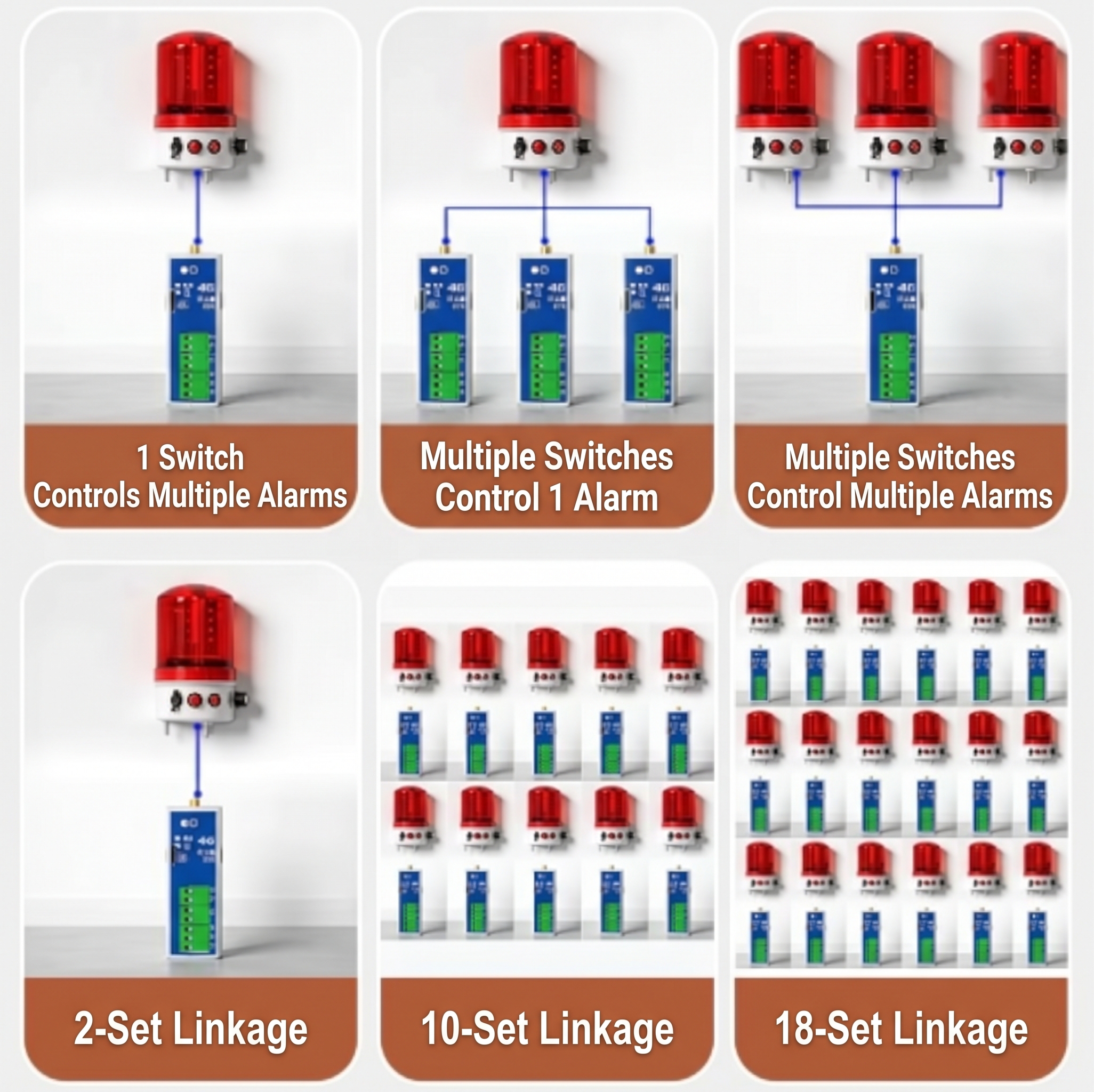

Engineered for industrial scalability, the system supports multi-topology deployment: 1-to-1 standalone pairs, 1-to-multiple broadcast alerts, multiple-to-1 centralized consoles, and up to 99 units simultaneous cloud cascade linkage with independent channel isolation to eliminate signal crosstalk across neighboring operational zones.
Key Engineering Highlights:
- Nationwide Unlimited Distance: 4G cellular IoT cloud linkage eliminates RF line-of-sight limitations and trenching costs
- Zero Configuration & Zero Field Wiring: Factory pre-paired transceivers operate out of the box with built-in IoT data cards
- Piercing Audible & Visual Warning: LTE-1101J siren outputs ≥120dB acoustic alarm with simulated-rotation high-flux LED strobe

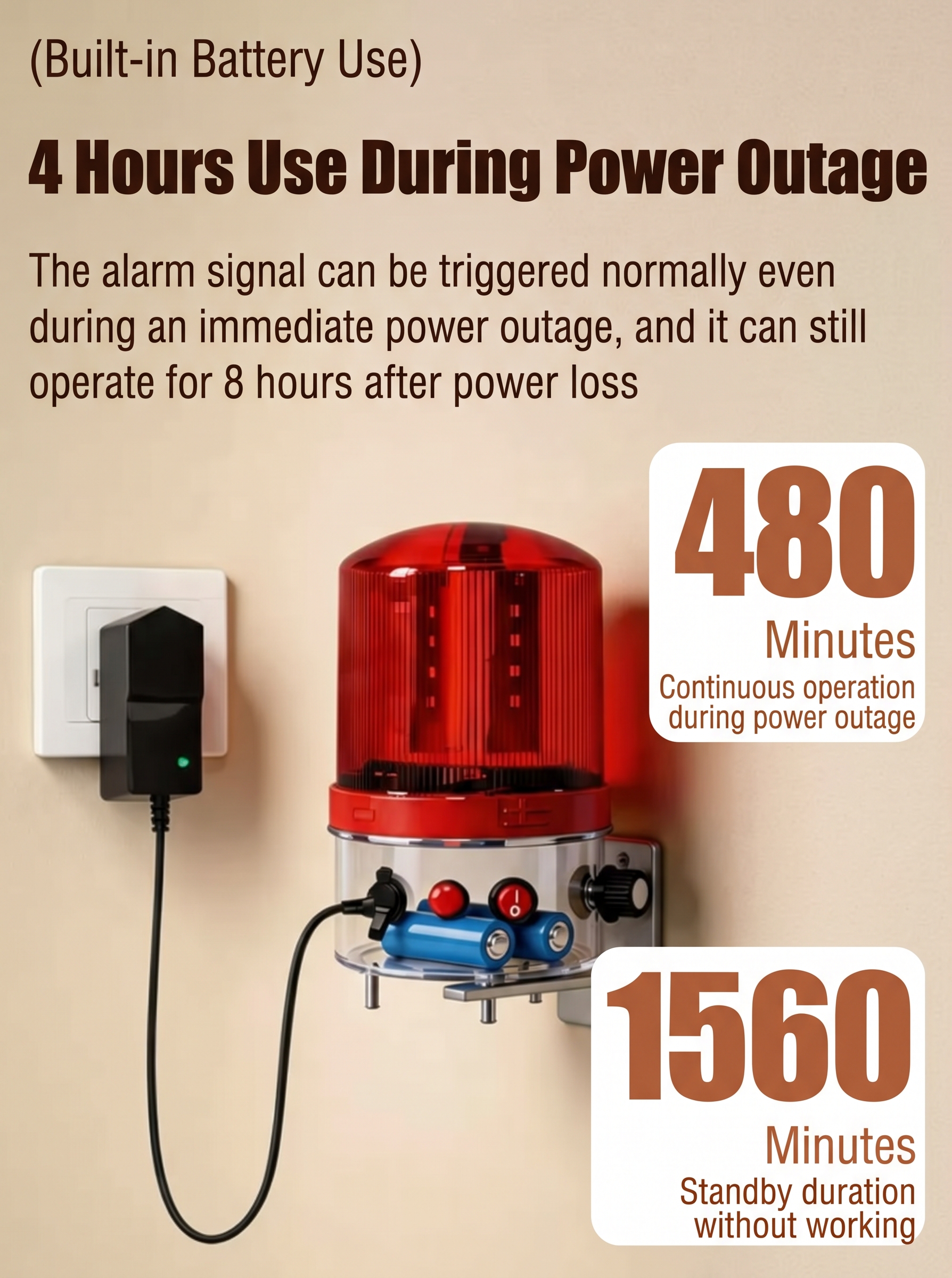

- Continuous Power-Outage Resilience: Internal rechargeable lithium battery powers 480 min (8h) continuous alarm or 1,560 min standby

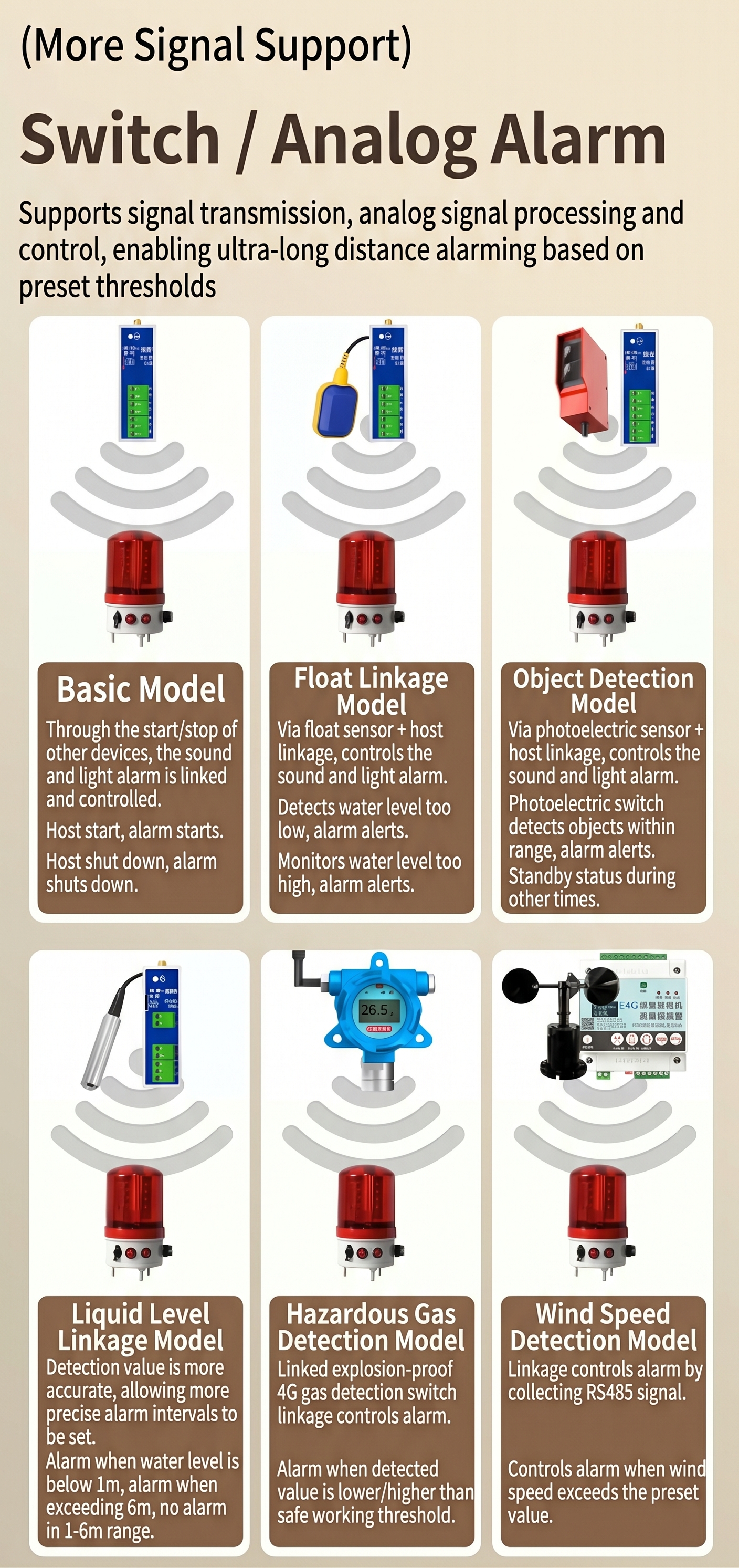

- Universal Industrial Inputs: Accepts dry contacts, NPN switches, 220VAC line monitoring (via NXJ relay), and 4-20mA/0-10V analog telemetry

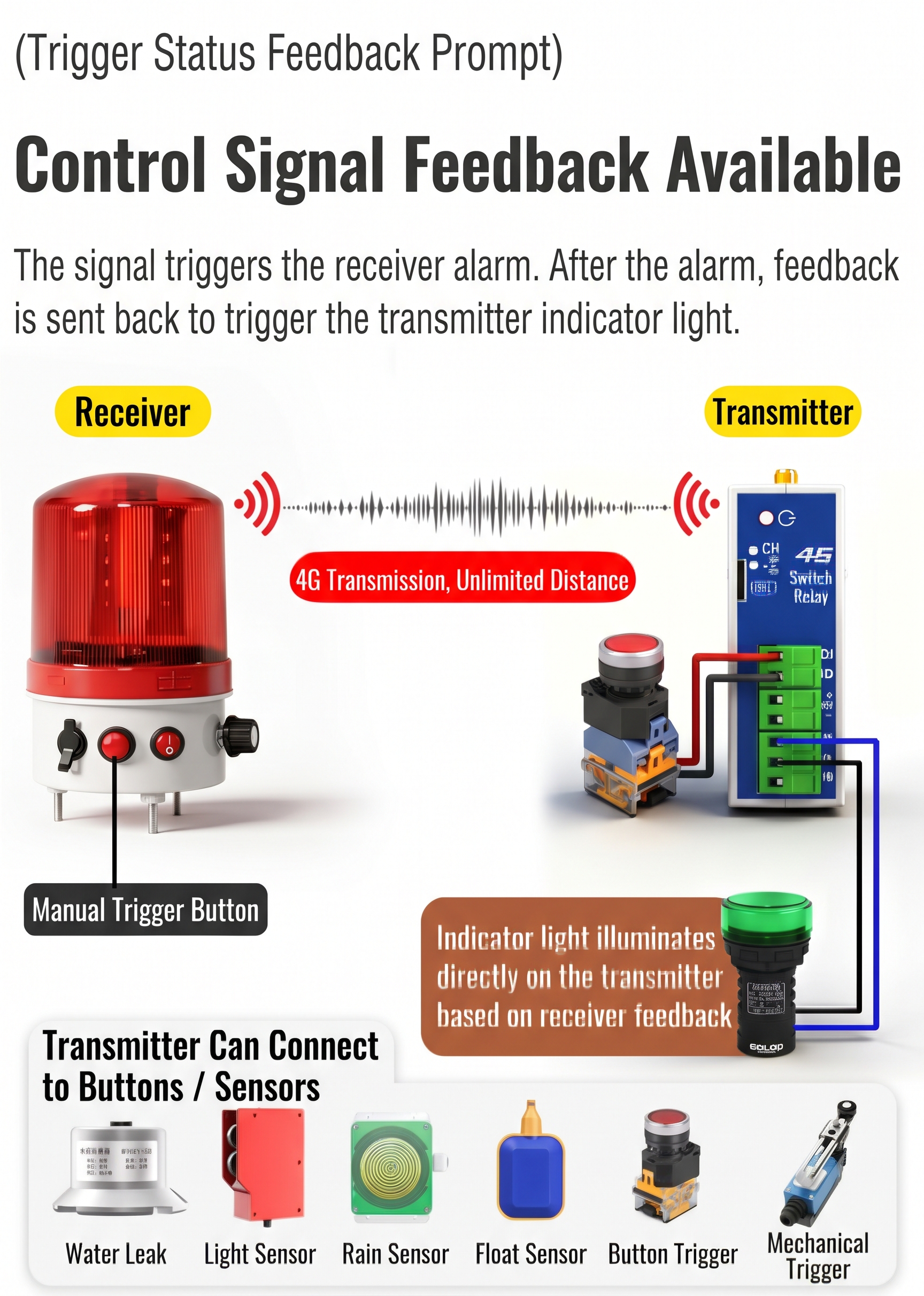

- Bidirectional Trigger Feedback: Transmitter module features dedicated confirmation indicator confirming remote siren activation

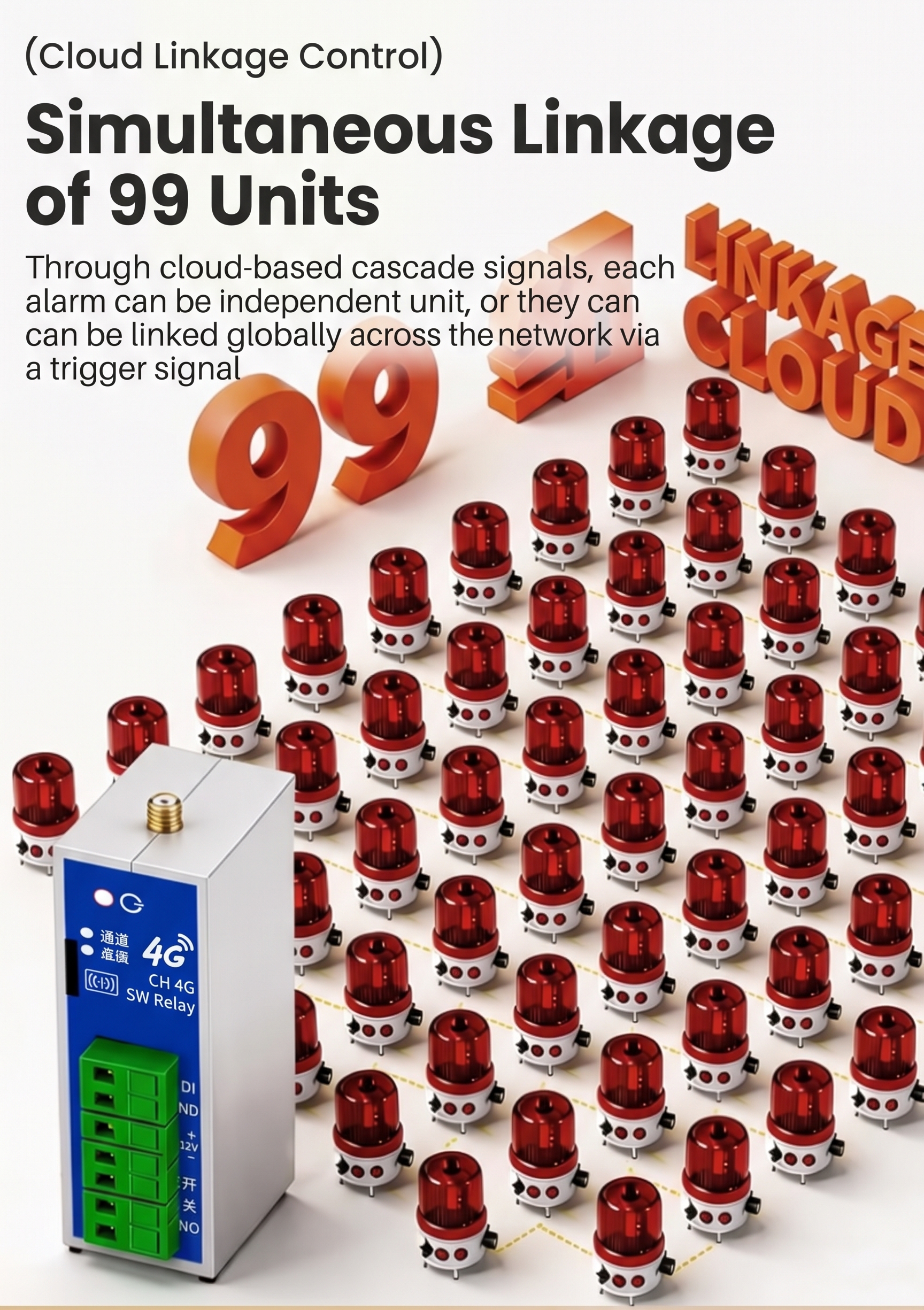

- Multi-Unit Cloud Linkage: Supports 1-to-1, 1-to-N, N-to-1, and up to 99 units synchronized cloud cascade alarms

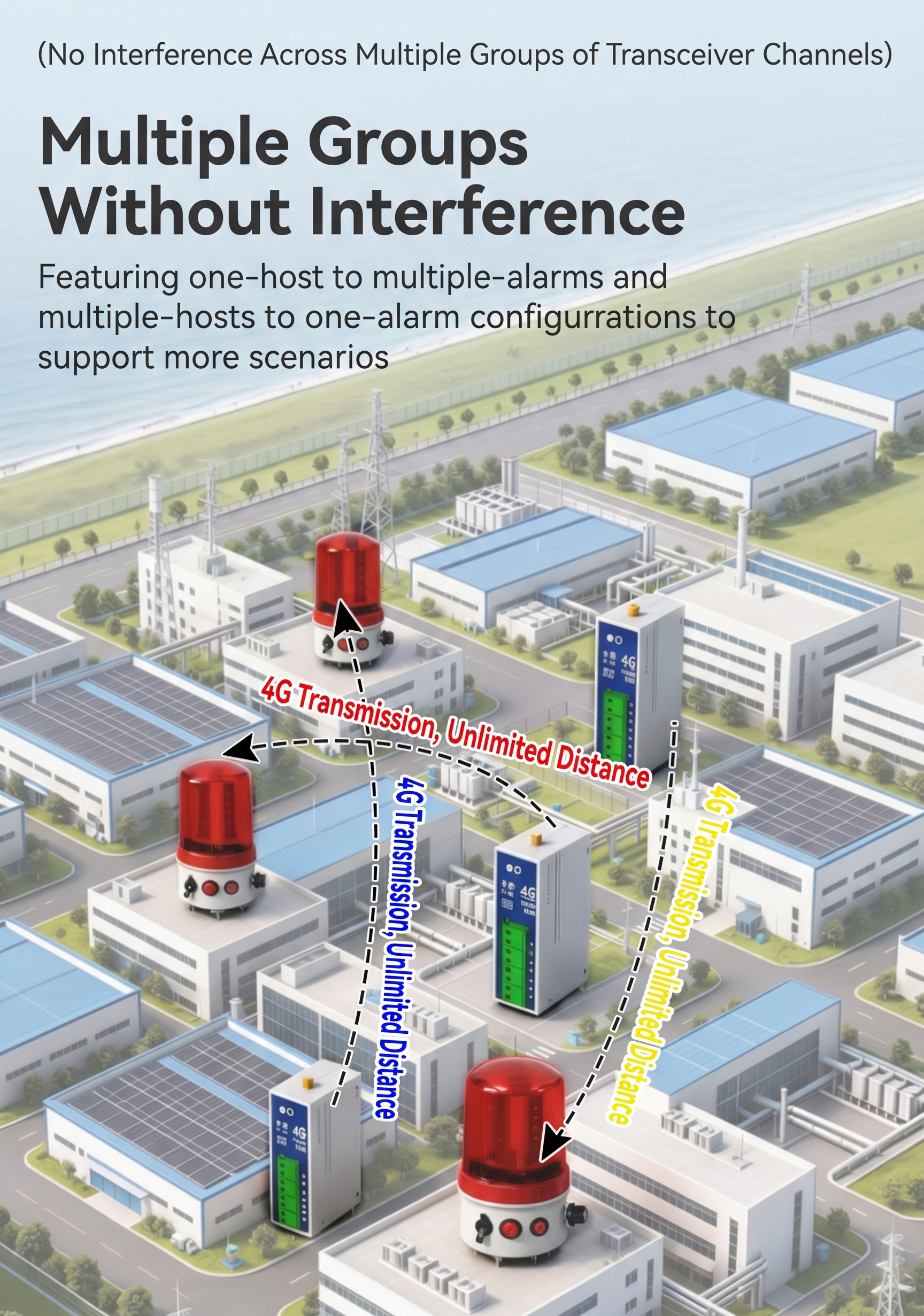

- Multi-Group Channel Isolation: Hardware and protocol encryption prevents crosstalk across adjacent plants and systems

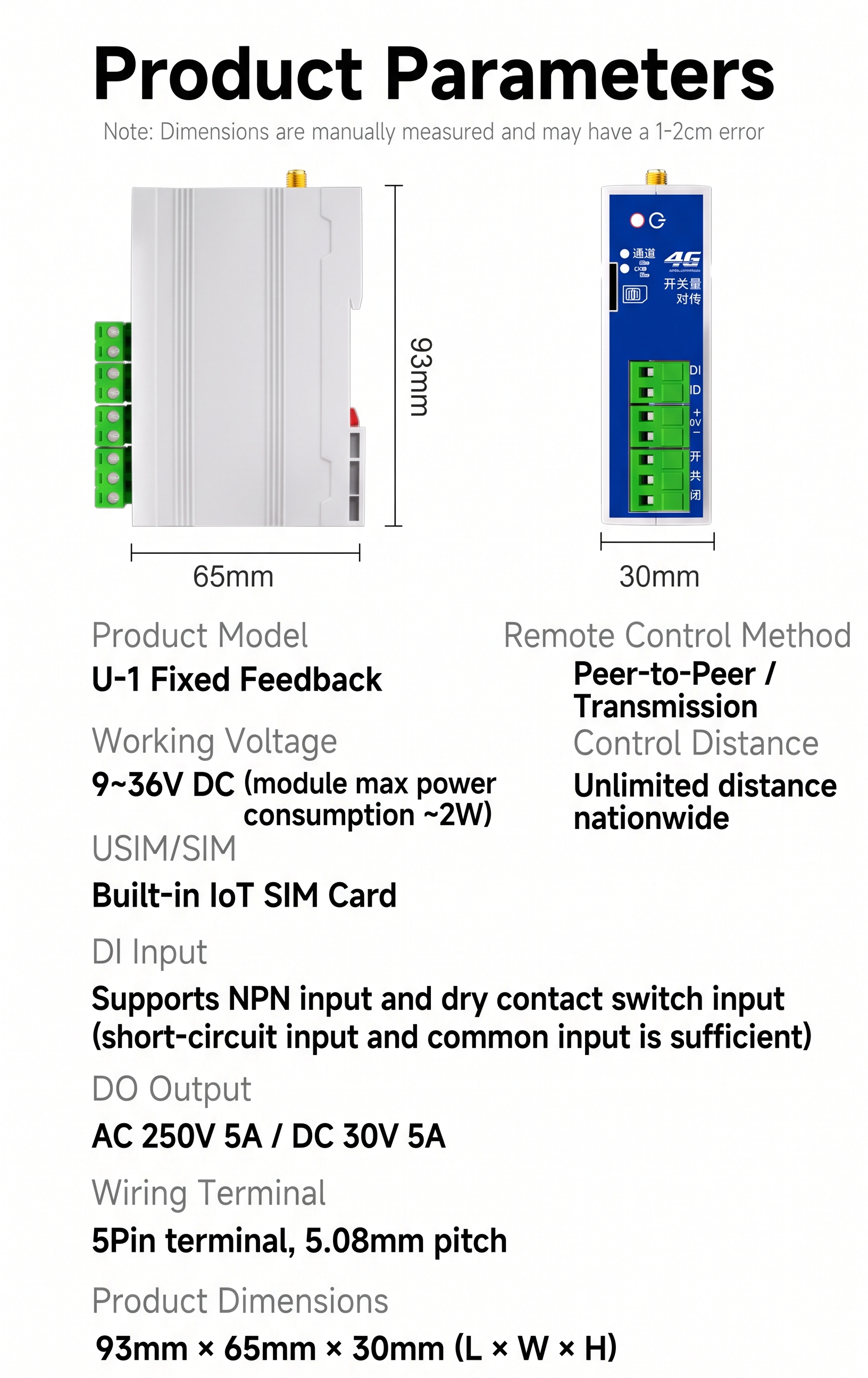

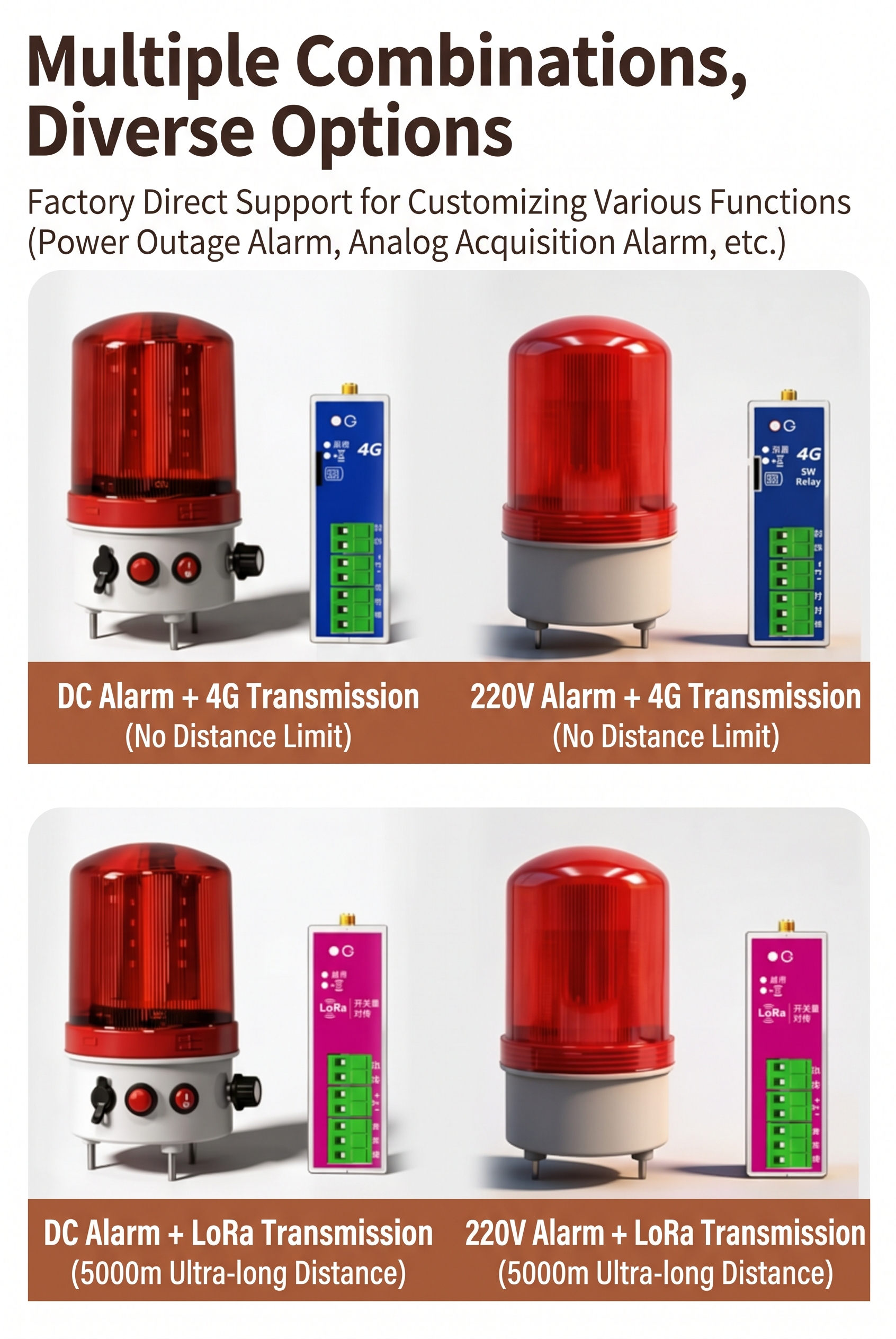

- Wide DC/AC Voltage Compatibility: 9–36V DC wide-range module supply (approx. 2W power consumption) and 220V AC siren options

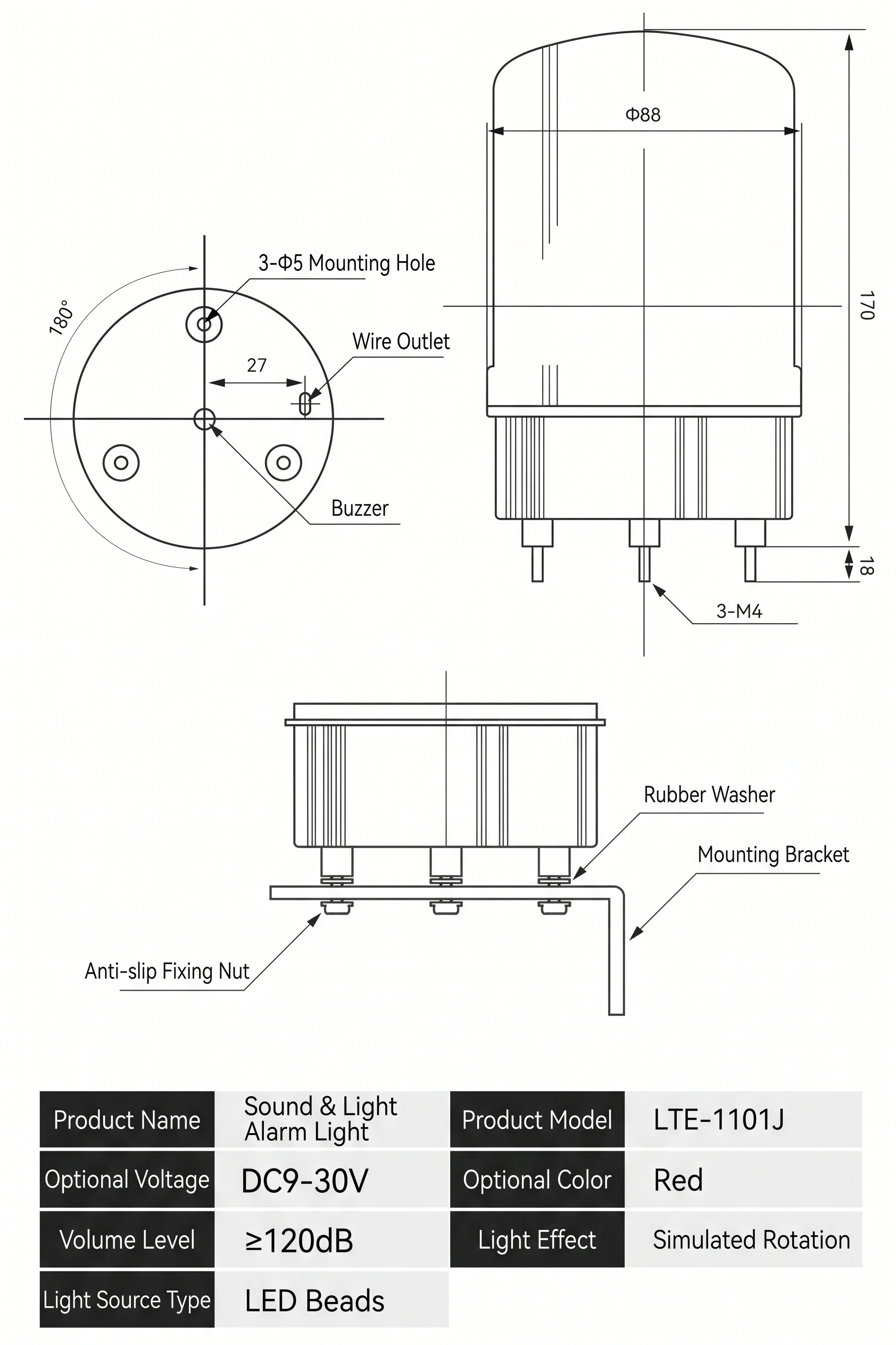

- Ruggedized Industrial Enclosure: IP54 weather-resistant housing with 3-point Φ5 base mount, rubber anti-vibration washer, and M4 hardware
Typical Industrial Applications
- Industrial Plant Emergency Alarms: Instant evacuation and equipment fault broadcast across vast manufacturing halls without field wiring
- Water Treatment & Sump Pit Monitoring: Liquid level float switches and 4-20mA hydrostatic probes triggering remote pump house sirens
- Petrochemical & Tank Farm Safety: Toxic/combustible gas sensor relay linkage alerting security booths across kilometer-scale facilities
- Tower Crane & Construction Wind Warning: Anemometer threshold triggering ground site sirens during high-wind gale events
- Perimeter Security & Intrusion Linkage: Photoelectric beams, infrared sensors, and emergency manual pushbuttons across multi-building compounds
- Power Distribution Room Trip Alerts: 220VAC line trip sensor linkage alerting central operations during switchgear outages
Patents & Compliance
- CE Marking - EN 61000-6-2 / EN 61000-6-4 Industrial EMC Immunity & Emission
- RoHS 2011/65/EU & REACH Directive Hazardous Substance Compliance
- Cellular Telemetry Module Carrier Conformance & Radio Regulatory Approval
- IP54 Ingress Protection per IEC 60529 (Dust & Water Spray Resistant)
- Flame-Retardant ABS/Polycarbonate Enclosure (UL94 V-0 Rated)
- ISO 9001:2015 Quality Management Certified Manufacturing Standard
