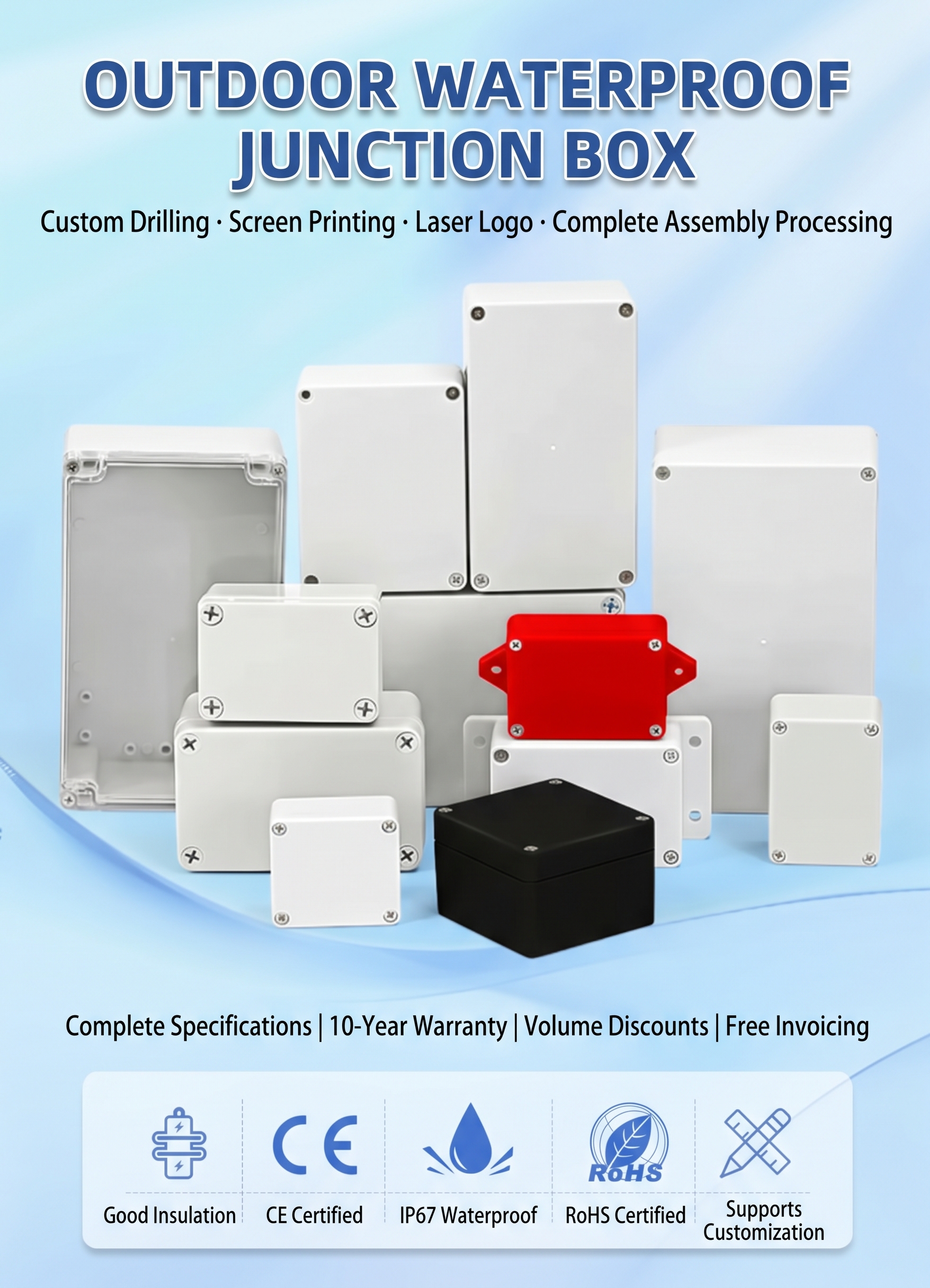

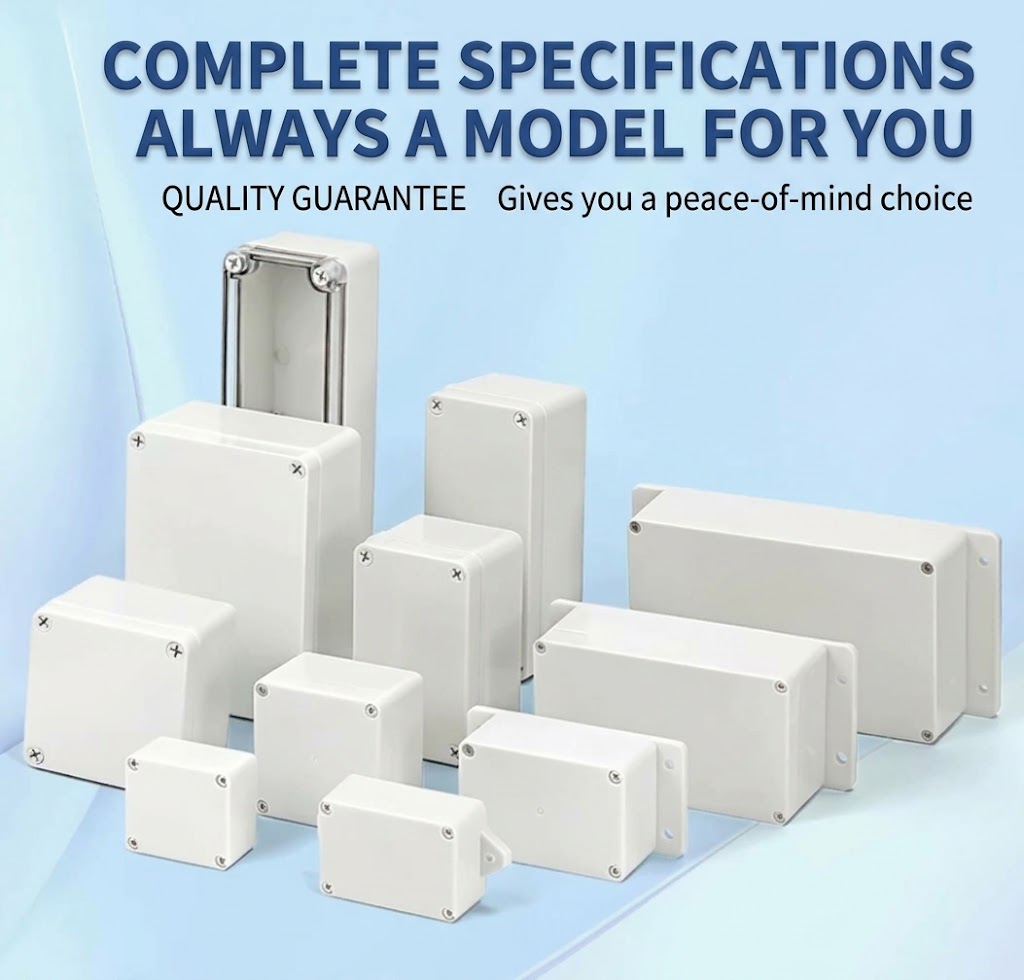

Industrial IP67 waterproof junction boxes in multiple sizes and cover styles (opaque and transparent PC covers).
Authorized distribution via SRE Pte. Ltd. Supplied with genuine Industrial Enclosure Systems factory documentation, standards compliance, and lot traceability.

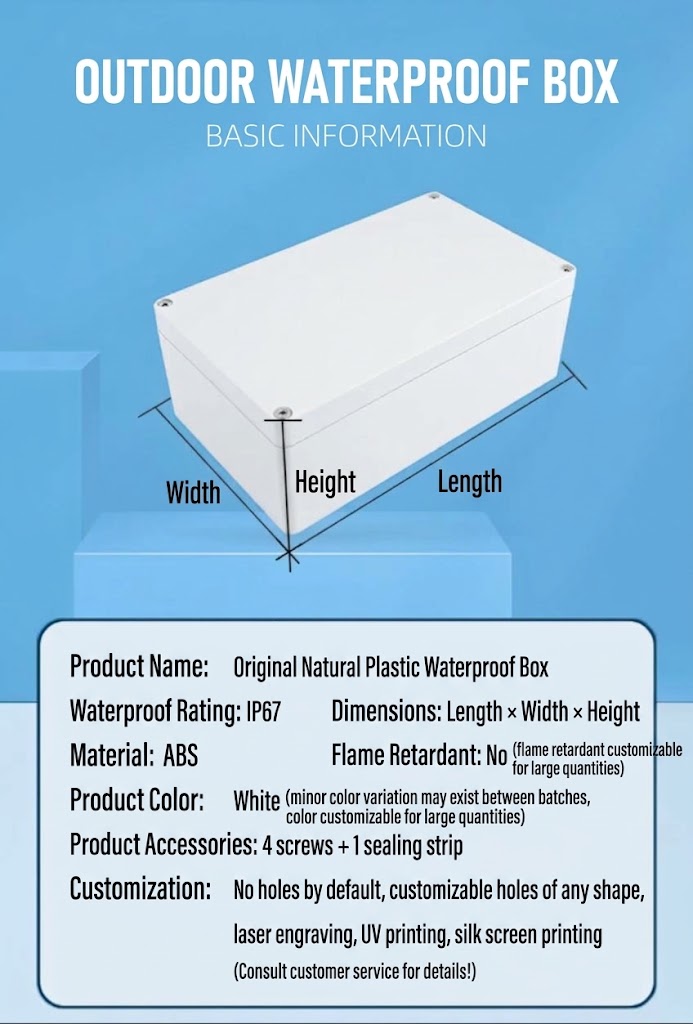

IP67 Industrial Outdoor ABS Waterproof Junction Box & Modular Terminal Enclosure
Industrial-grade IP67 sealed ABS waterproof junction box engineered from 100% virgin impact-resistant ABS. Features integrated mechanical resin sealing rings, embedded brass threaded inserts, anti-drop quick-release screws, and comprehensive CNC custom hole/printing processing.
Industrial Enclosure Systems Engineering & Technical Overview
The F & AG Series IP67 waterproof junction boxes deliver robust environmental protection for industrial automation, outdoor surveillance, telecommunications, marine docks, and municipal infrastructure. Molded from 100% brand-new virgin engineering ABS resin (free from regrind or toxic heavy metals), the enclosure provides superior impact toughness, UV resistance, and crack resistance across extreme operating temperatures from -20°C to +60°C.

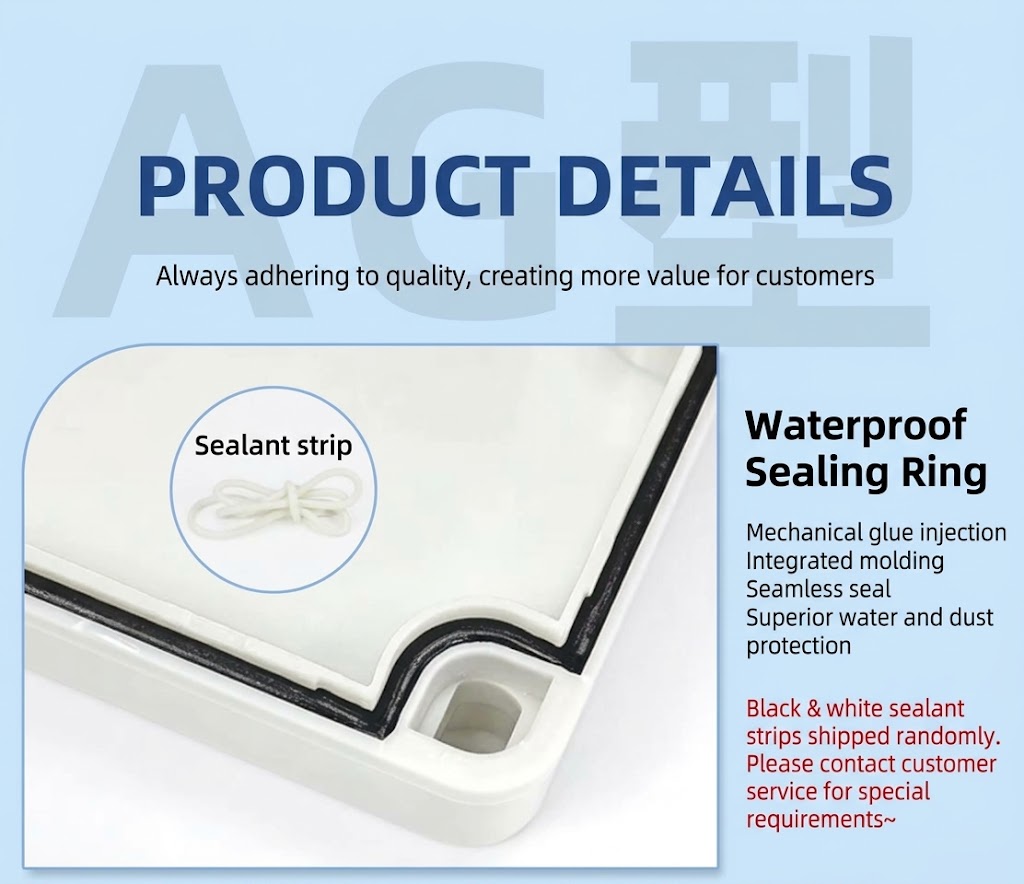

Engineered with a continuous automated dispensing liquid sealing gasket, the enclosure guarantees an impermeable, seamless seal certified to IP67 waterproof and dustproof standards (tested with 8-hour continuous vacuum dust extraction and submersion up to 1 meter depth for 30 minutes without fluid ingress).

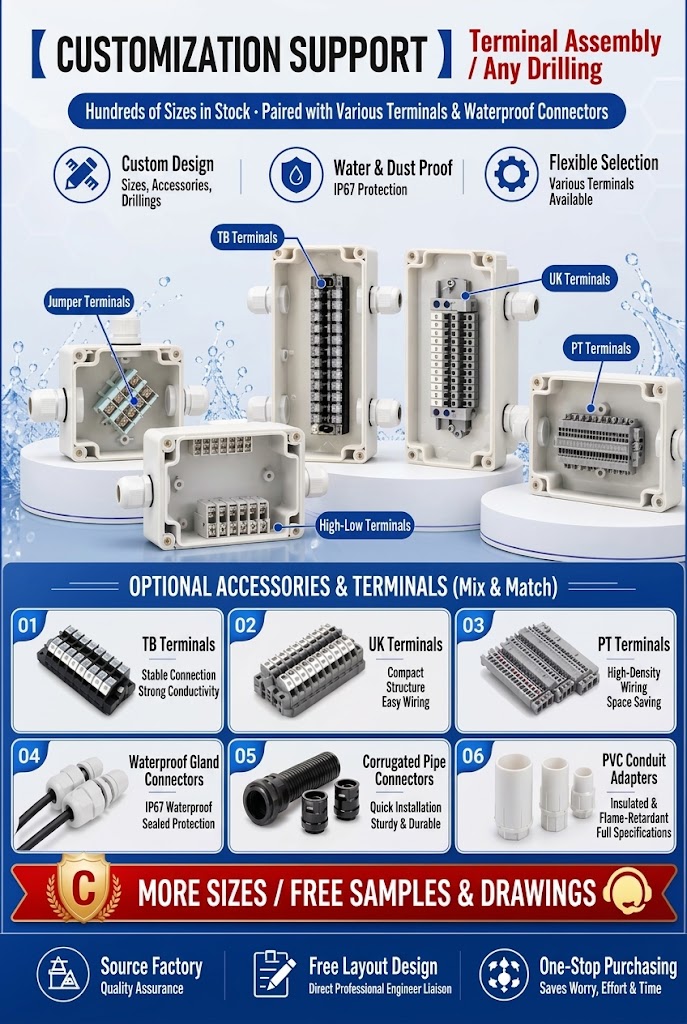

Features precision pre-molded threaded brass inserts (anti-slip and strip-resistant across repeated maintenance cycles), captive anti-drop mounting screws (available in 304 stainless steel or insulated polycarbonate), and internal base mounting bosses for DIN rails, PCB standoffs, and modular terminal blocks (TB, UK, PT, and high-low stepped terminal strips).

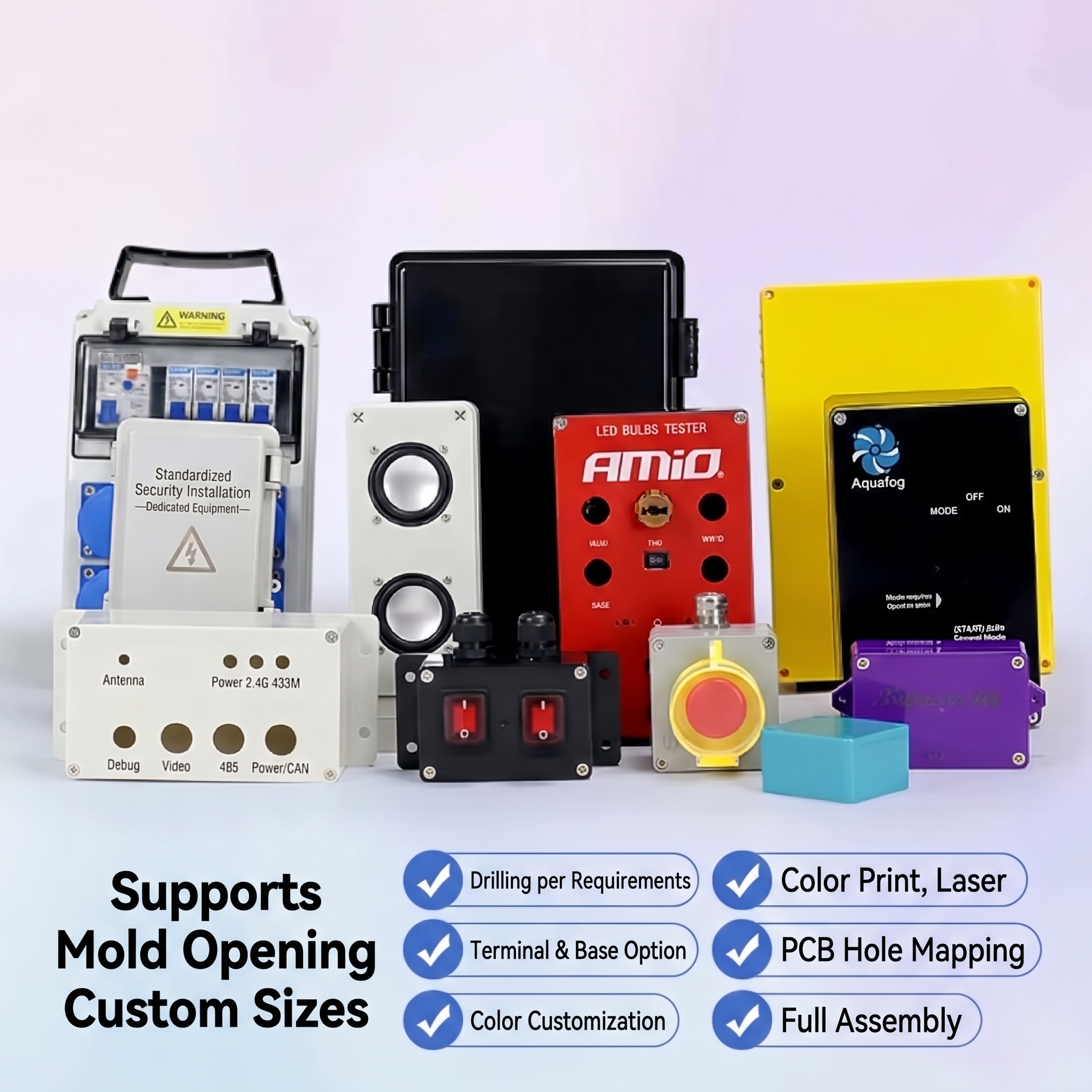

Supported by an 8,800 m² high-precision factory facility equipped with over 200 production and CNC drilling machines, providing rapid 1-on-1 drawing customization, custom CNC openings (circular, rectangular, irregular), laser engraving, UV screen printing, and complete pre-wired terminal assembly.
Key Engineering Highlights:

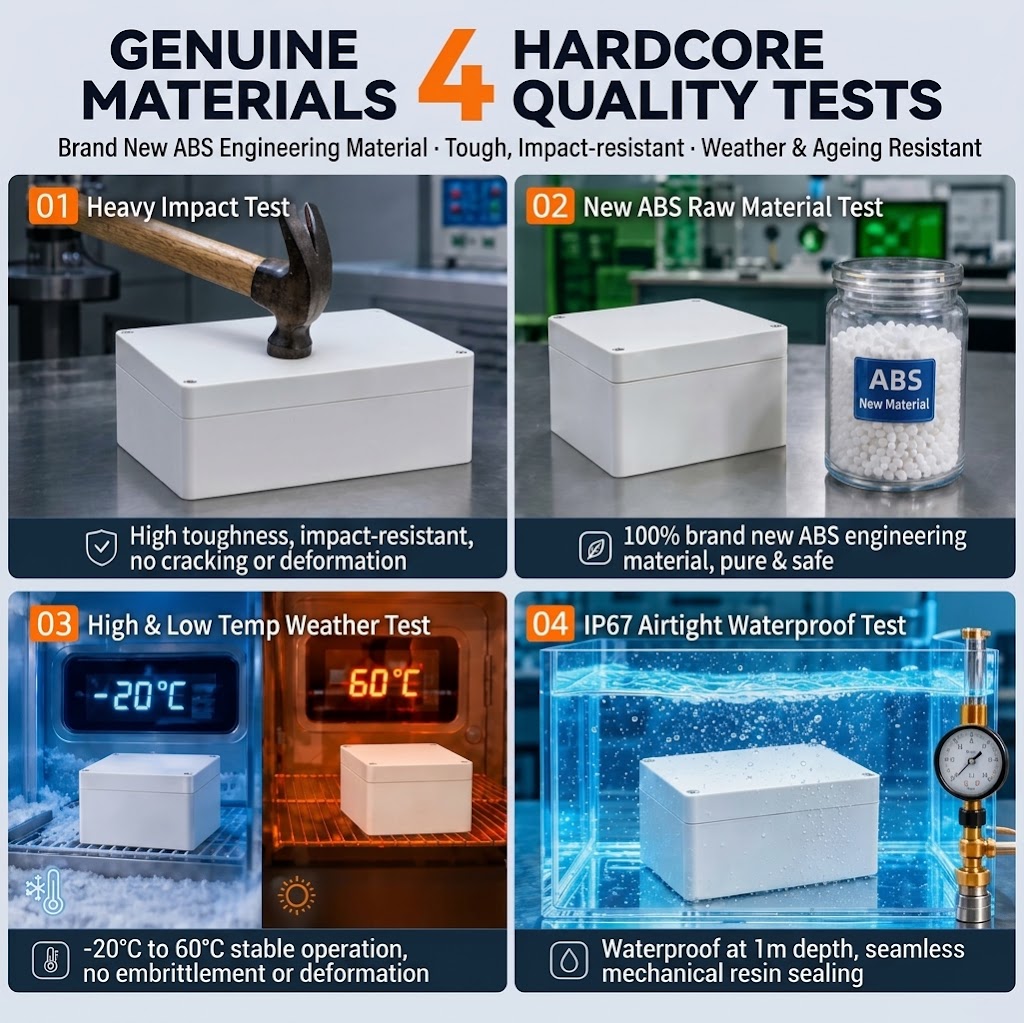

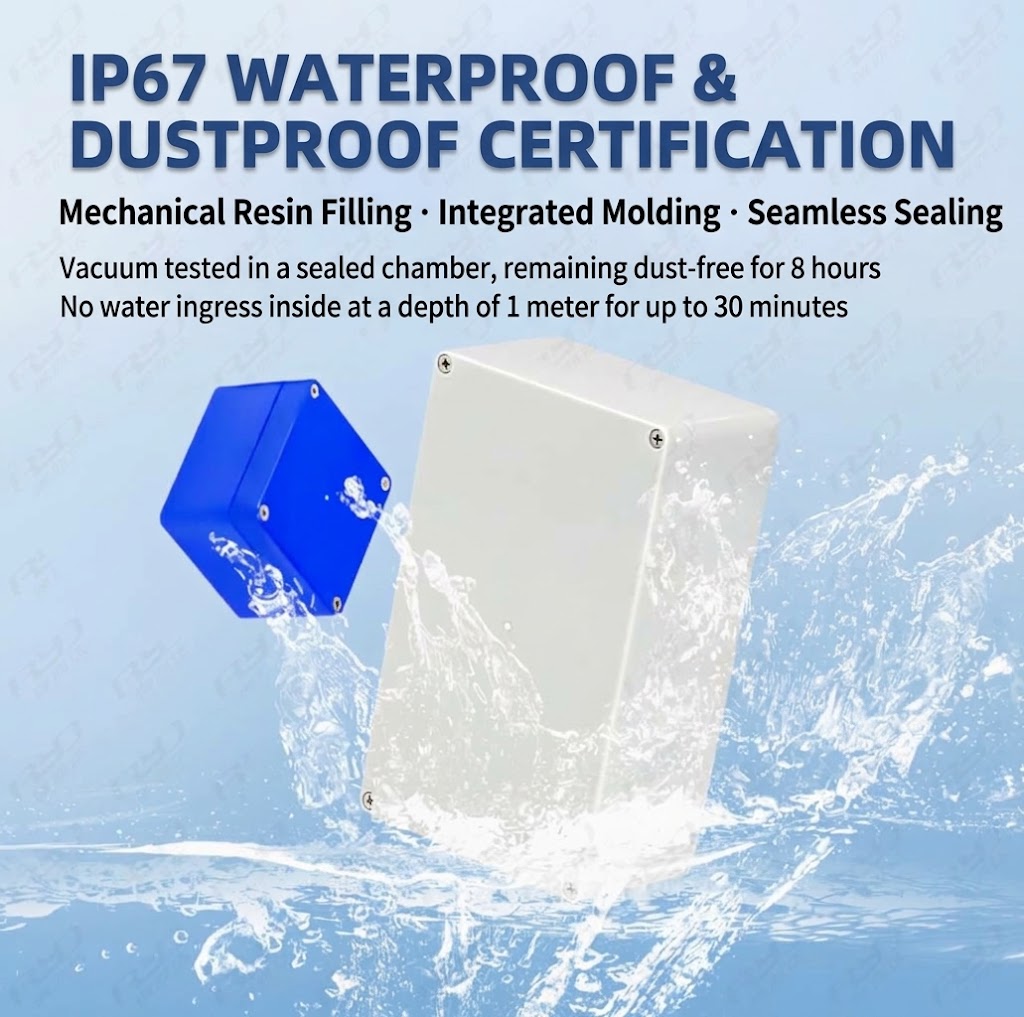

- IP67 Ingress Protection Certified: Automated mechanical resin foam dispensing creates an unbroken, seamless seal tested at 1 meter water immersion for 30 minutes and 8-hour negative pressure vacuum dustproofing.

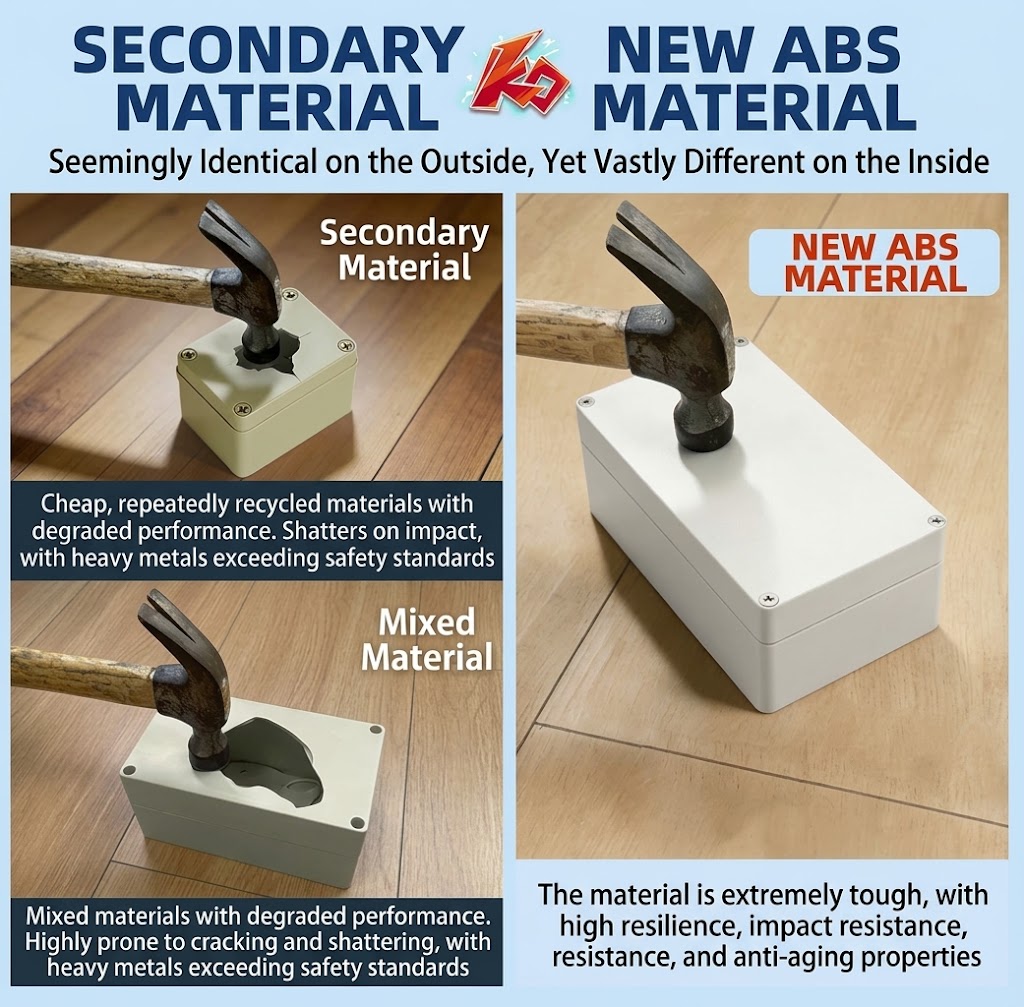

- 100% Virgin ABS Engineering Resin: Exceptional impact resistance tested by heavy hammer drop tests; resistant to thermal embrittlement (-20°C to +60°C) without cracking, chalking, or warping.

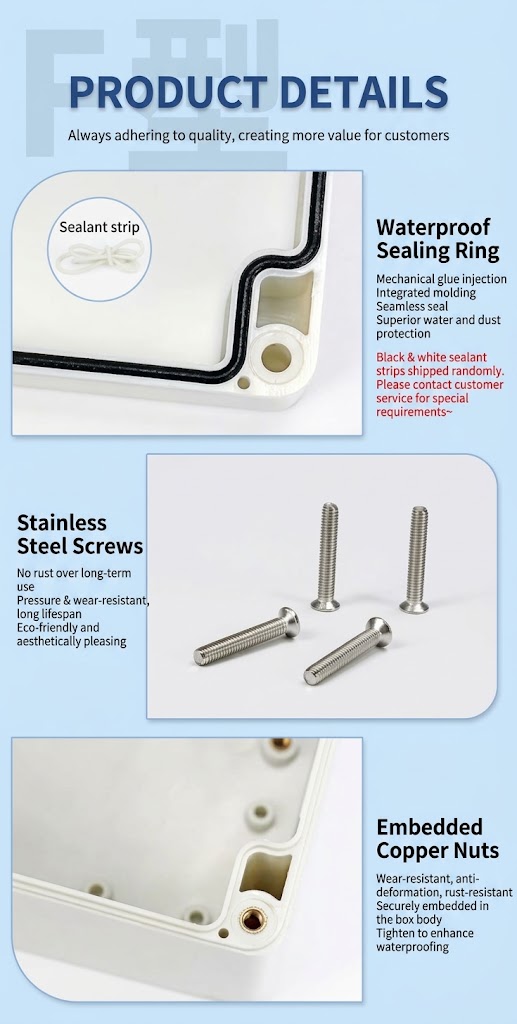

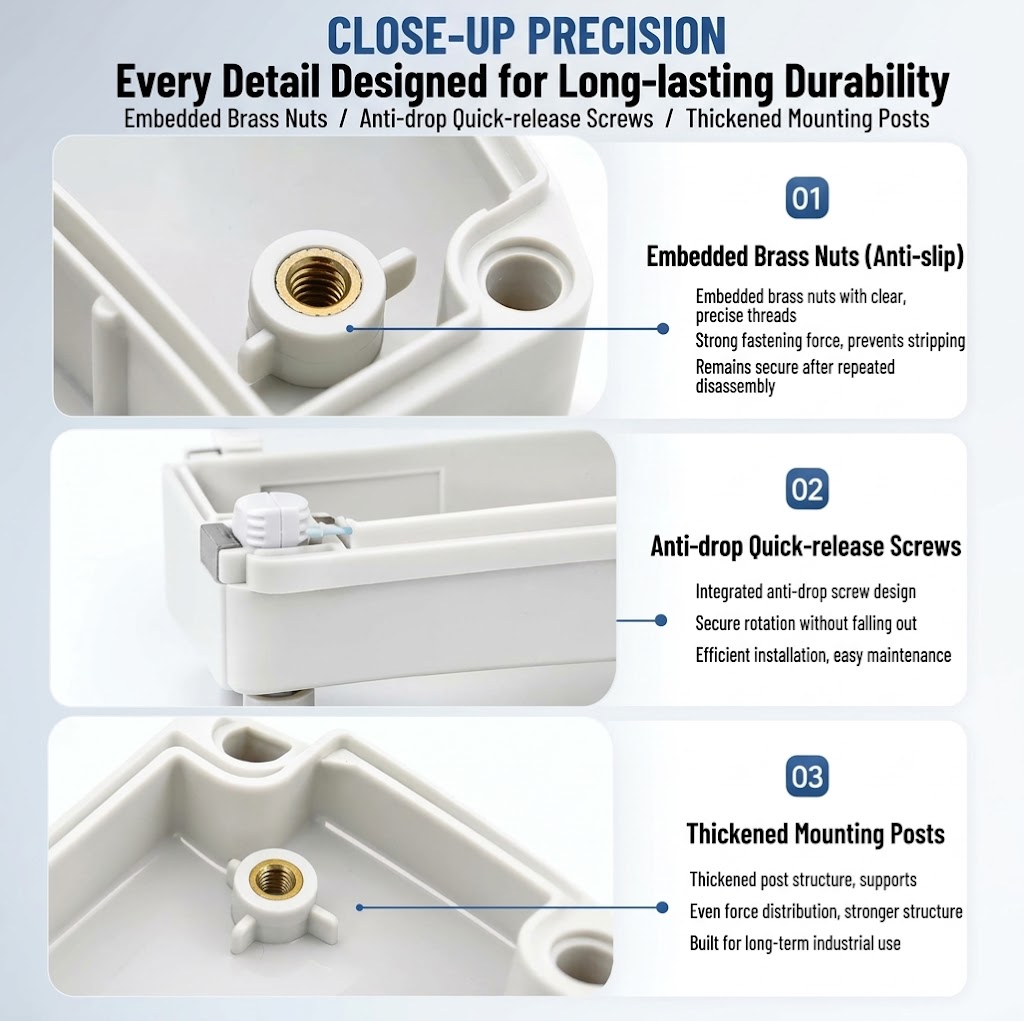

- Embedded Brass Nut Inserts: Machined brass threaded bushings firmly anchored into the enclosure body ensure tight clamping force and prevent thread stripping during repeated field disassembly.

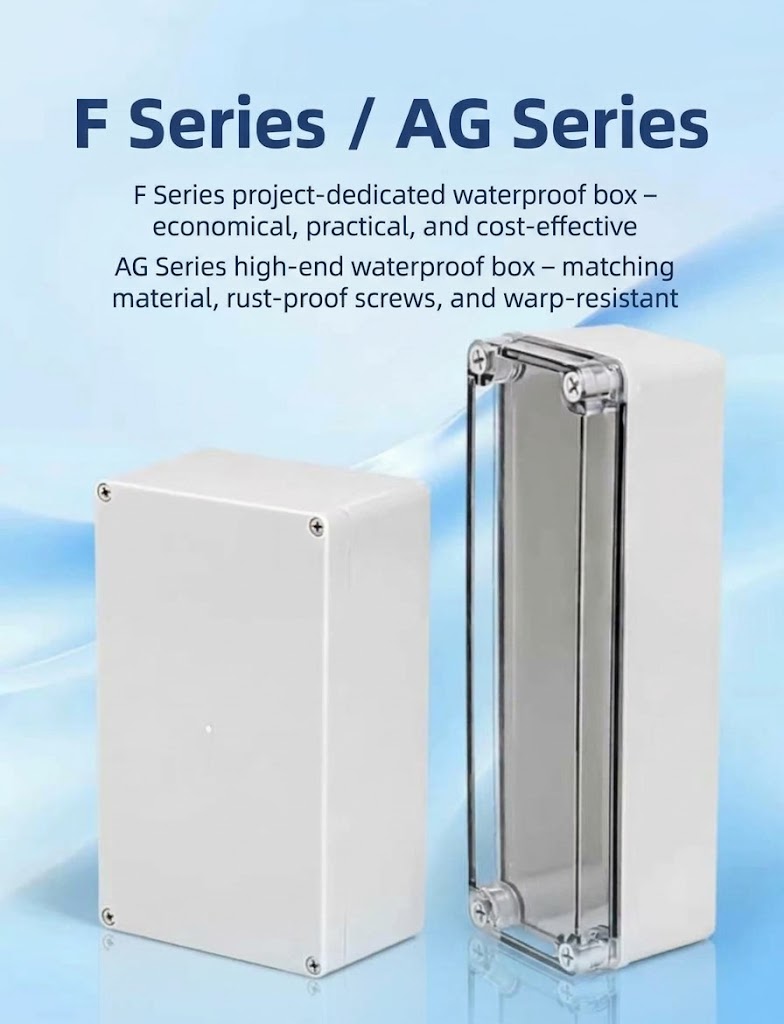

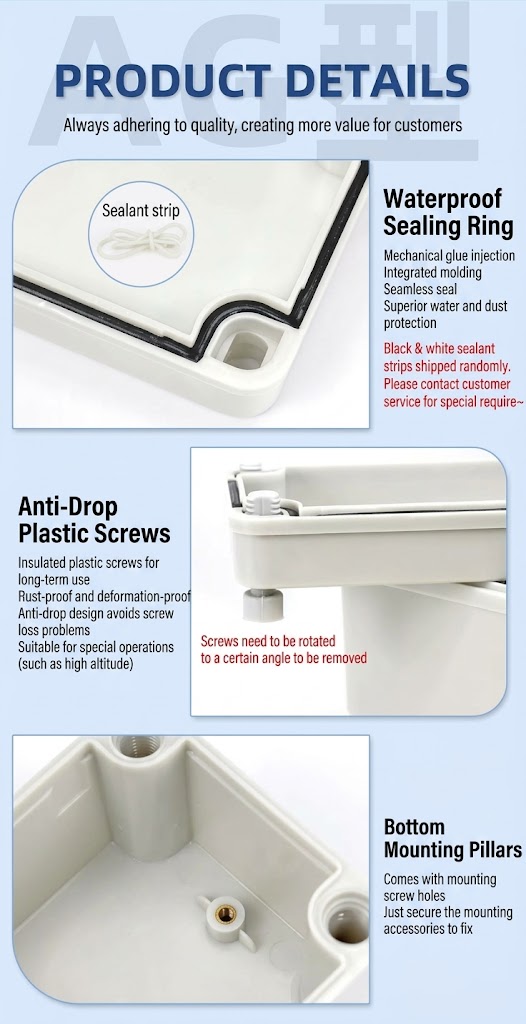

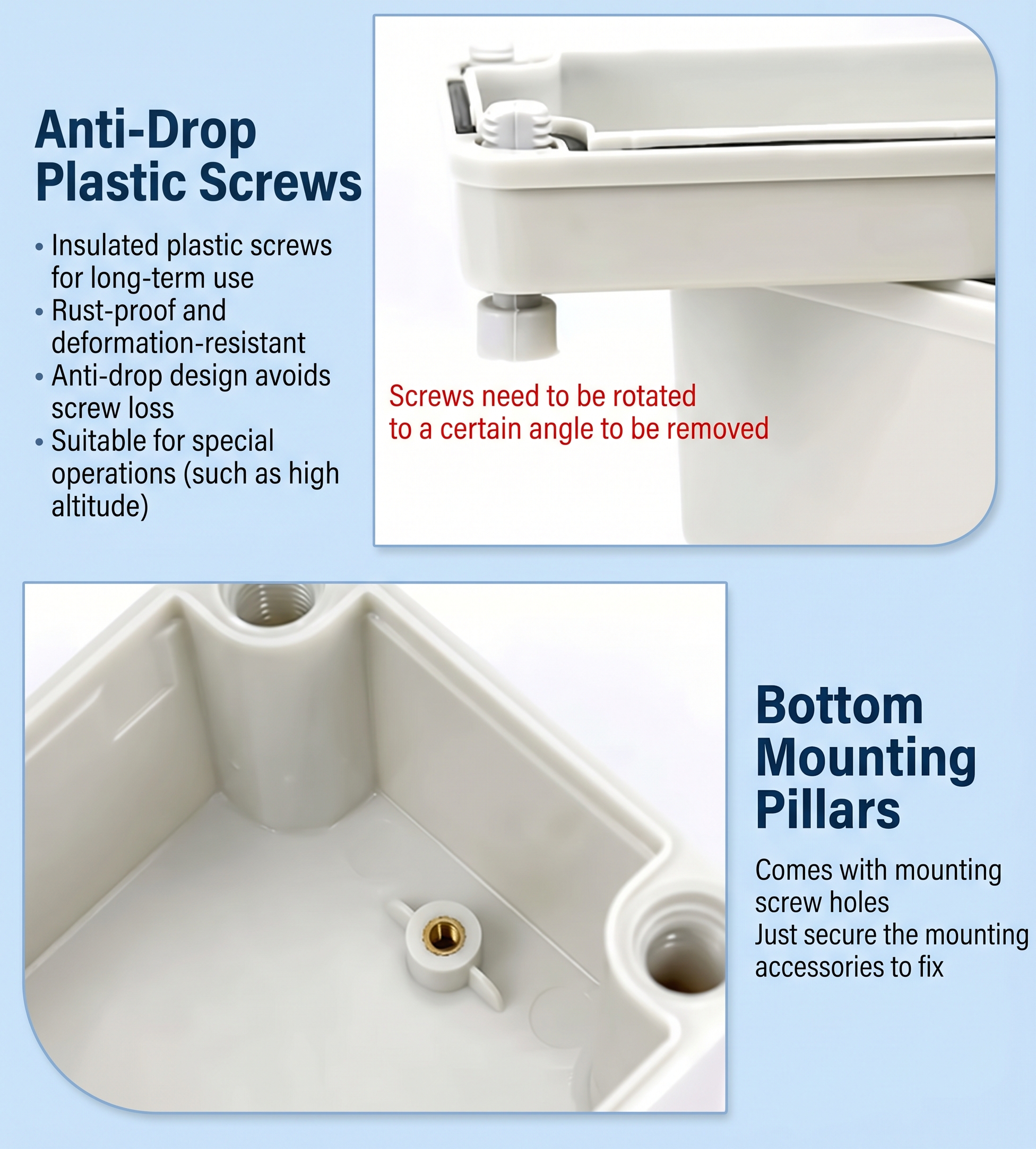

- Dual Screw Fastening Configurations: F-Series equipped with corrosion-resistant 304 stainless steel machine screws; AG-Series equipped with captive anti-drop insulated polymer screws (engineered to stay retained at height).
- Internal Standoff & Rail Mounting Bosses: Base features thickened mounting pillars with self-tapping / brass threaded holes for DIN rails, modular terminal blocks, and custom PCB integration.

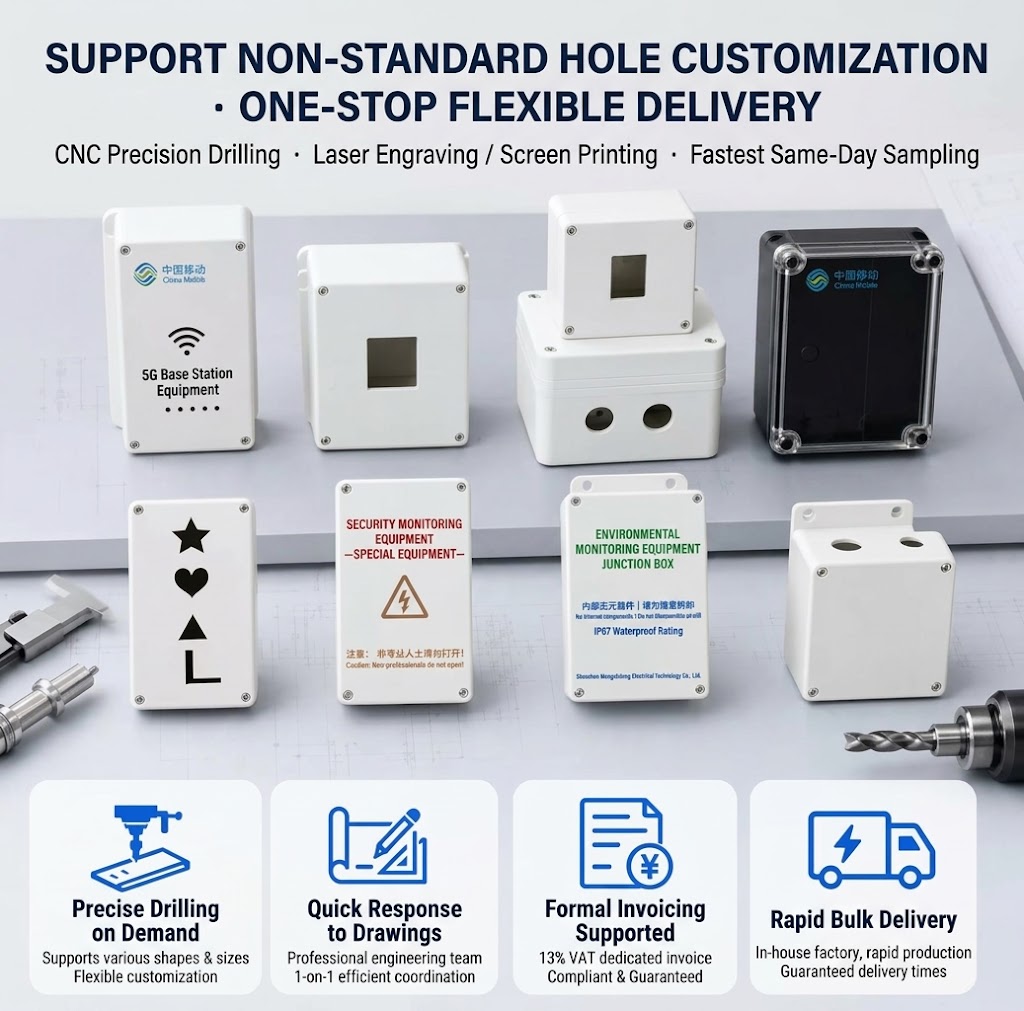

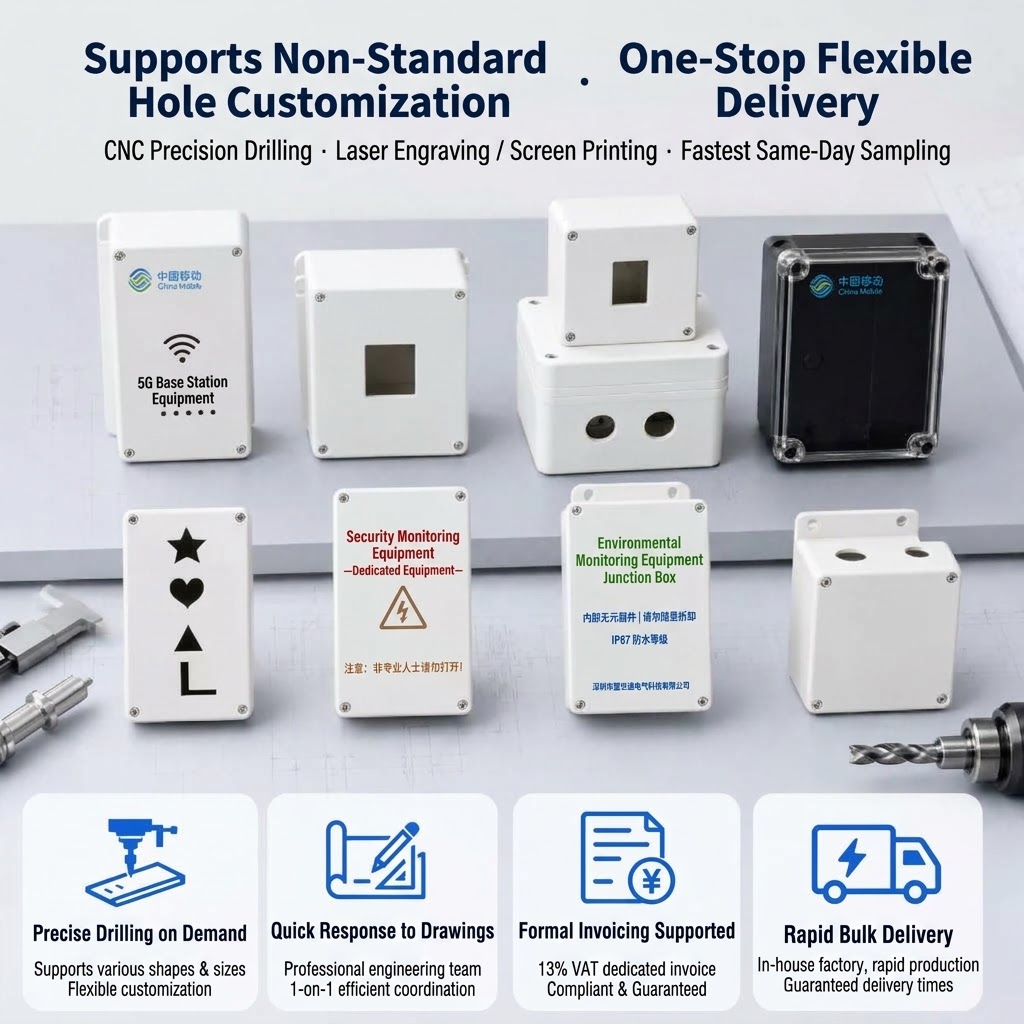

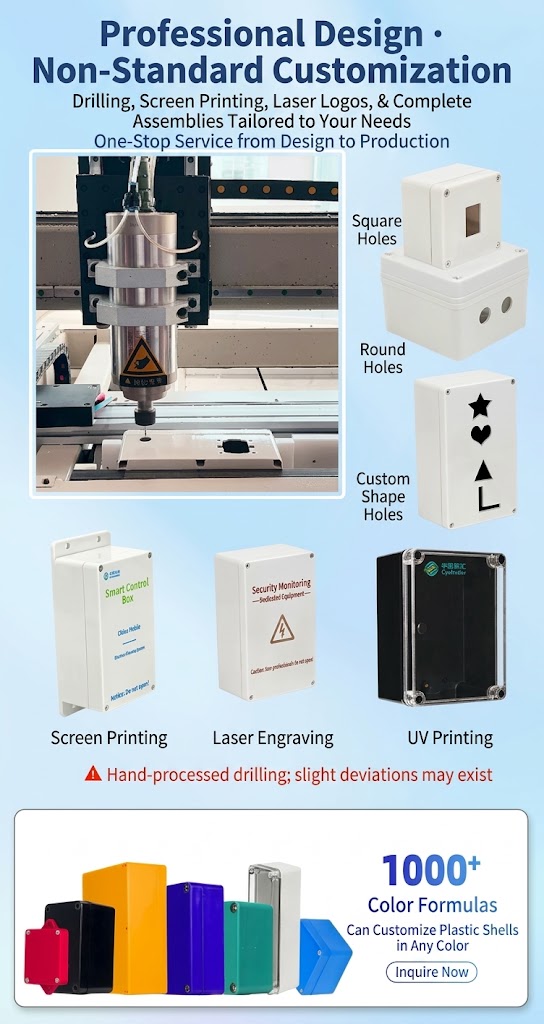

- Full Customization Ecosystem: CNC precision drilling for cable glands, buttons, displays, and conduit adapters, accompanied by laser engraving, UV printing, and custom shell compounding with 1000+ color formulas.
- Full Industrial Accessories Compatibility: Supports waterproof cable glands (PG/M thread), corrugated conduit adapters, TB/UK/PT terminal strips, and external wall-mounting brackets.
Typical Industrial Applications
- Outdoor Security & Video Surveillance: Pole-mounted CCTV camera power supplies, POE splitters, surge protectors, and video balun enclosures resistant to driving typhoons and UV solar radiation.
- Industrial Plant Machinery & Factory Automation: Production line wiring junctions, switchgear interface boxes, PLC remote terminal boards, and motor control connections protected against splash and metal swarf.
- Ports, Harbours & Marine Coastal Installations: High-salinity coastal telemetry, crane boom cable termination, lighting junctions, and sensor boxes immune to corrosive salt spray.
- Municipal Infrastructure & Smart City Landscape Lighting: Underground pathway junction wells, street lamp branch wiring, landscape fountain power boxes, and perimeter garden security.
- Industrial IoT, 5G Telemetry & Solar Energy: Solar PV array monitoring, outdoor wireless gateway shelters, remote sensor stations, and battery storage charge controller packaging.
Patents & Compliance
- IP67 Waterproof & Dustproof Test Certification (BST / Dongguan EBO Safety Testing)
- CE Compliance Certificate (LVD / Machinery Directives)
- RoHS Eco-Friendly Environmental Compliance (Heavy Metal & Hazardous Substances Free)
- China Compulsory & National CNAS/MA Laboratory Accredited Quality Test Reports
- ISO 9001 Certified Factory Production (Standardized 8,800m² Plant, 200+ CNC Machines)
