CNSL compact type selector switch overview highlighting 2-position and 3-position operator configurations with premium stainless steel collars.
Authorized distribution via SRE Pte. Ltd. Supplied with genuine CNSL / Sanli Electric factory documentation, standards compliance, and lot traceability.

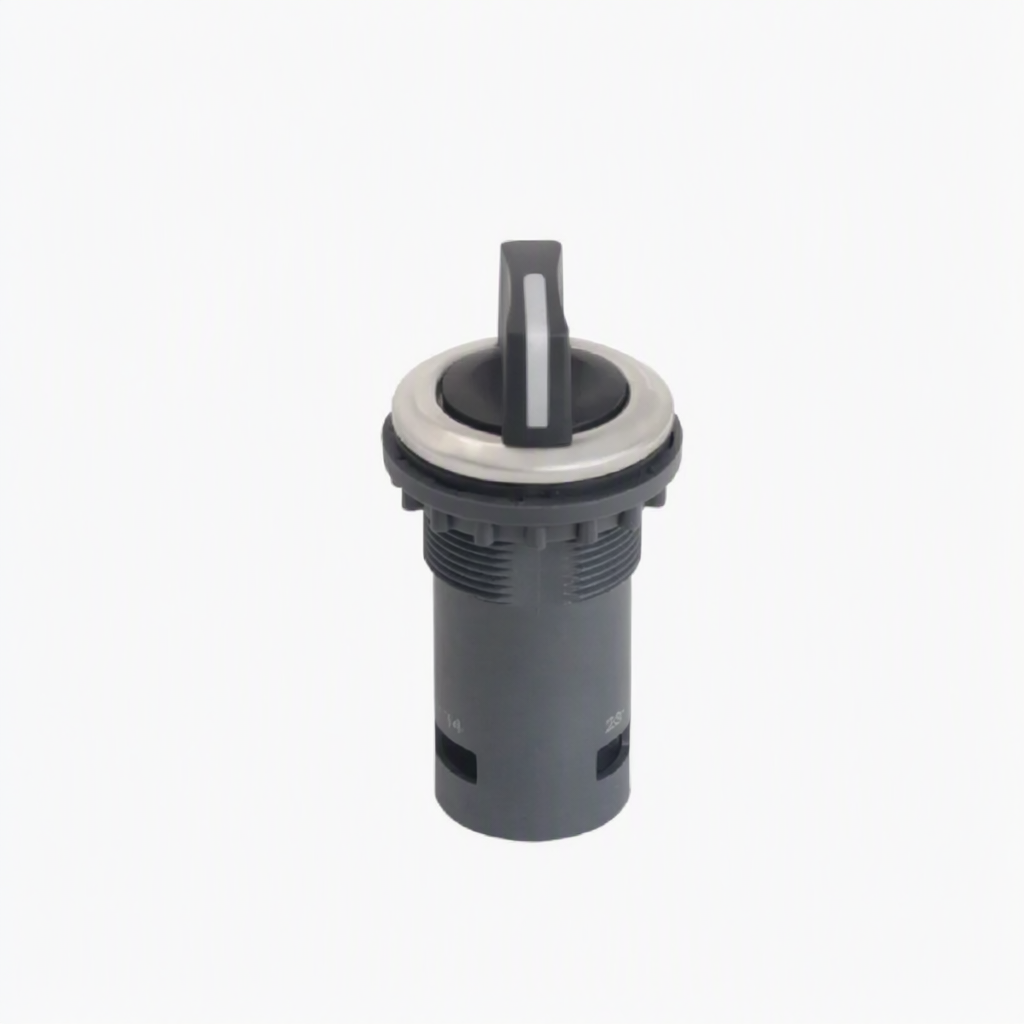

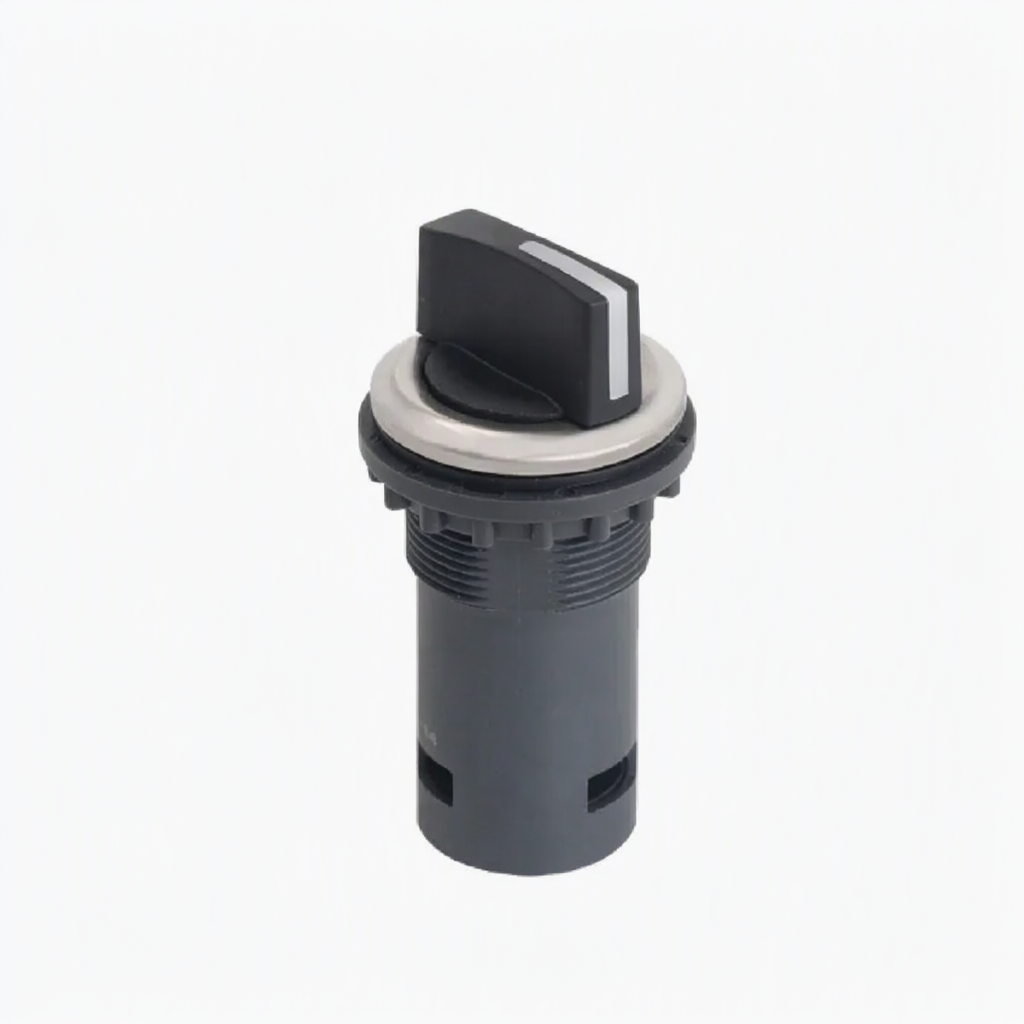

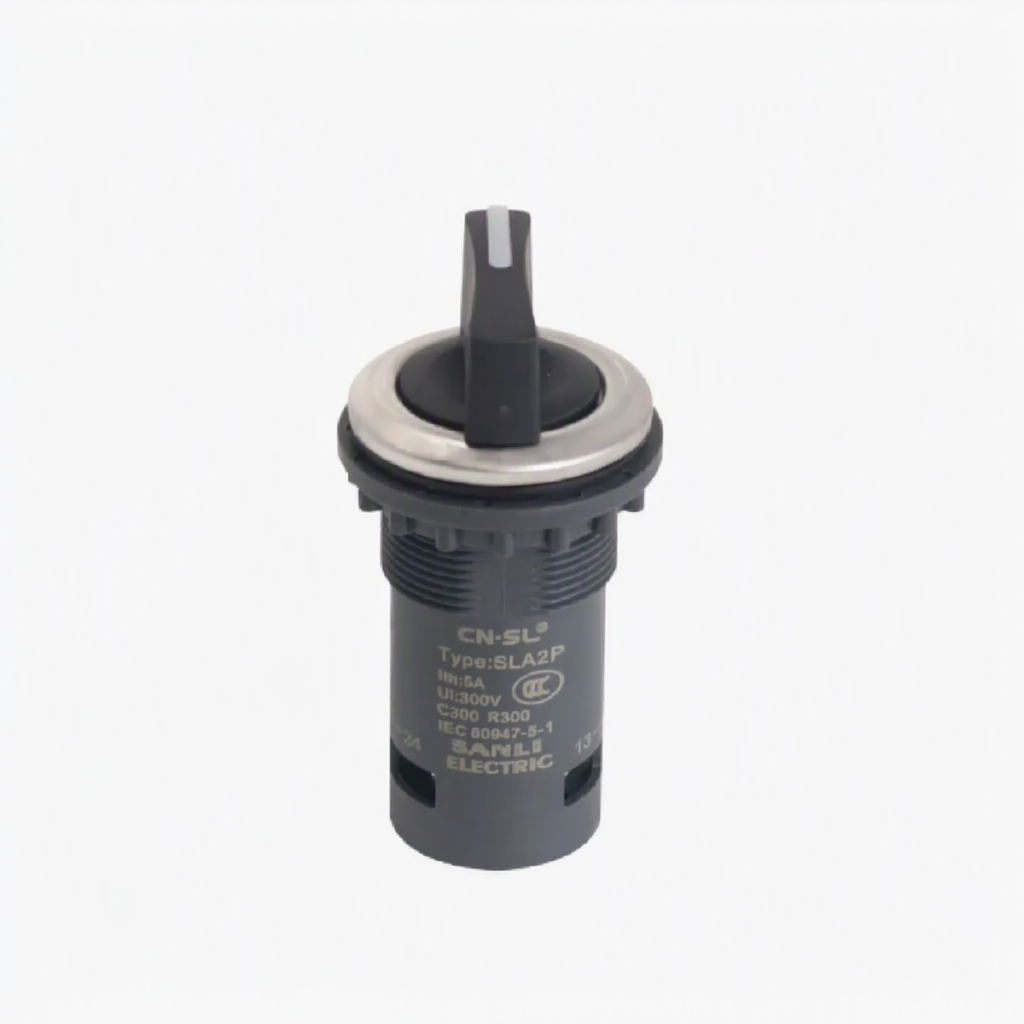

SLA2P 22mm Industrial Rotary Selector Switch (CE / CCC / IP65 Waterproof / 2-Pos & 3-Pos)
CE and CCC certified compact 22mm panel-mount rotary selector switch featuring an IP65 waterproof/dustproof seal, self-cleaning silver-plated sliding contacts, separated NO/NC blocks, and a reinforced stainless steel operator guard. Engineered for medical equipment, automation consoles, and industrial machine tools.
CNSL / Sanli Electric Engineering & Technical Overview
The SLA2P-X series 22mm industrial rotary selector switch is a high-reliability, compact panel control device engineered for standardized 22mm (M22 / 22.5mm) cutouts. Specifically optimized for medical instrumentation, industrial machine tools, electrical distribution switchgear, and automation control consoles, the SLA2P series delivers positive tactile detent positioning across 2-position (90°) and 3-position (45°-0°-45°) operational modes.
Internally, the switch features structurally separated and electrically insulated Normally Open (NO) and Normally Closed (NC) contact blocks. This independent modular architecture allows separate contact poles to safely switch disparate electrical phases and polarities simultaneously without crosstalk or flashover risks. Heavy-duty silver-plated sliding contacts utilize an active self-cleaning wipe geometry that strips surface oxide and contamination during every rotary actuation, maintaining ultra-low contact resistance and exceptional conductivity.

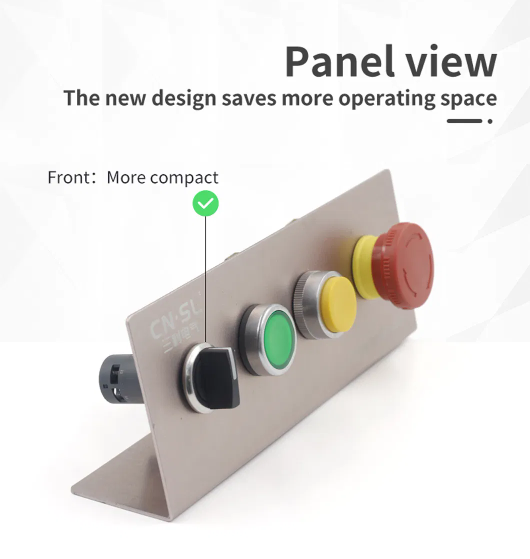

Engineered for high-density modern control panels, the SLA2P incorporates a compact space-saving barrel design that drastically reduces rear panel enclosure depth. The front operator features a thickened ergonomic frosted rotary knob with a clear white position pointer, framed by a robust stainless steel protective bezel ring for superior impact resistance and tactile feedback even when operated with industrial gloves.

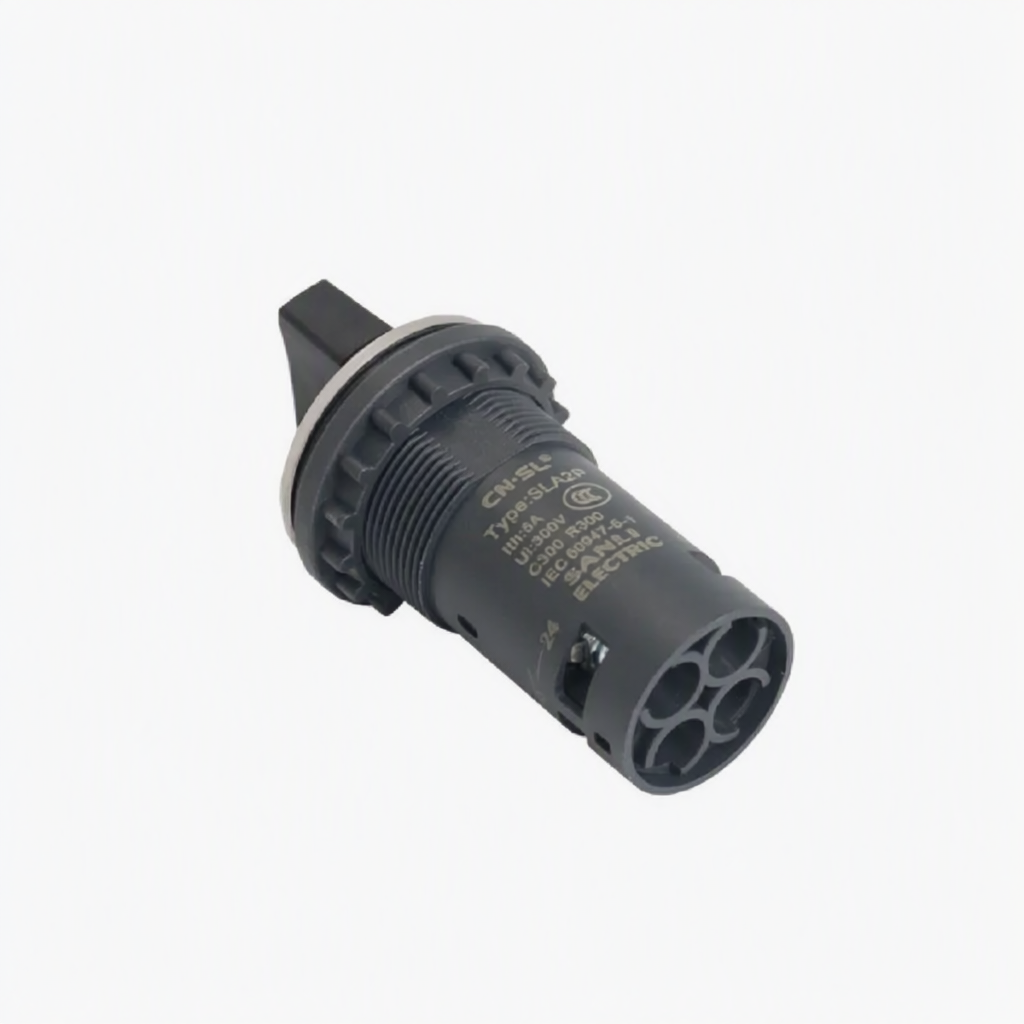

To ensure long-term durability in hostile environments, the switch achieves certified IP65 waterproof and dustproof protection via an integrated high-grade elastomer O-ring sealing ring. The recessed finger-safe rear terminal housing incorporates guided combination clamp screws with captive washers, streamlining wiring efficiency while preventing electrical shock hazards.

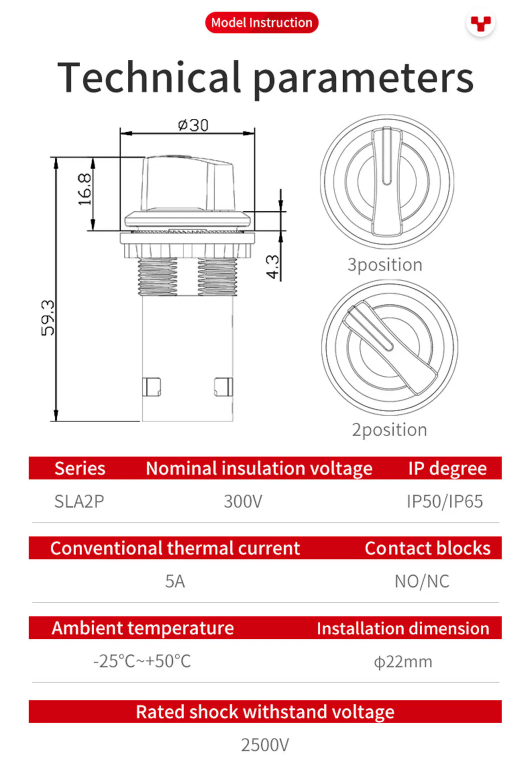

Fully accredited under European CE (Low Voltage Directive EN 60947-5-1 & EMC Directives) and China Compulsory Certification (CCC), the SLA2P selector switch withstands an impulse withstand voltage of 2500V, nominal insulation voltage of 300V, and wide ambient temperature ranges from -25°C to +50°C.
Key Engineering Highlights:
- CE & CCC Certified Compliance: Conforms fully with IEC/EN 60947-5-1 and GB/T 14048.5 industrial switchgear safety standards with European CE and CCC accreditations.

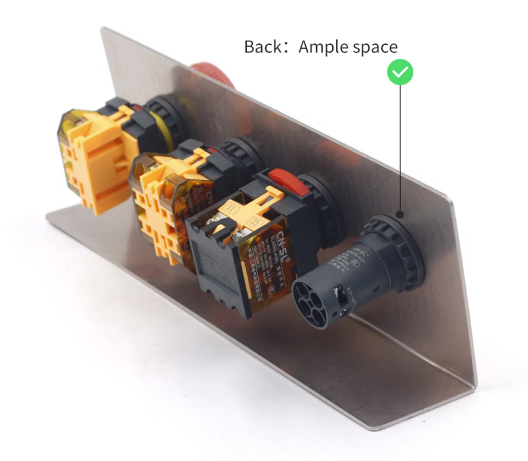

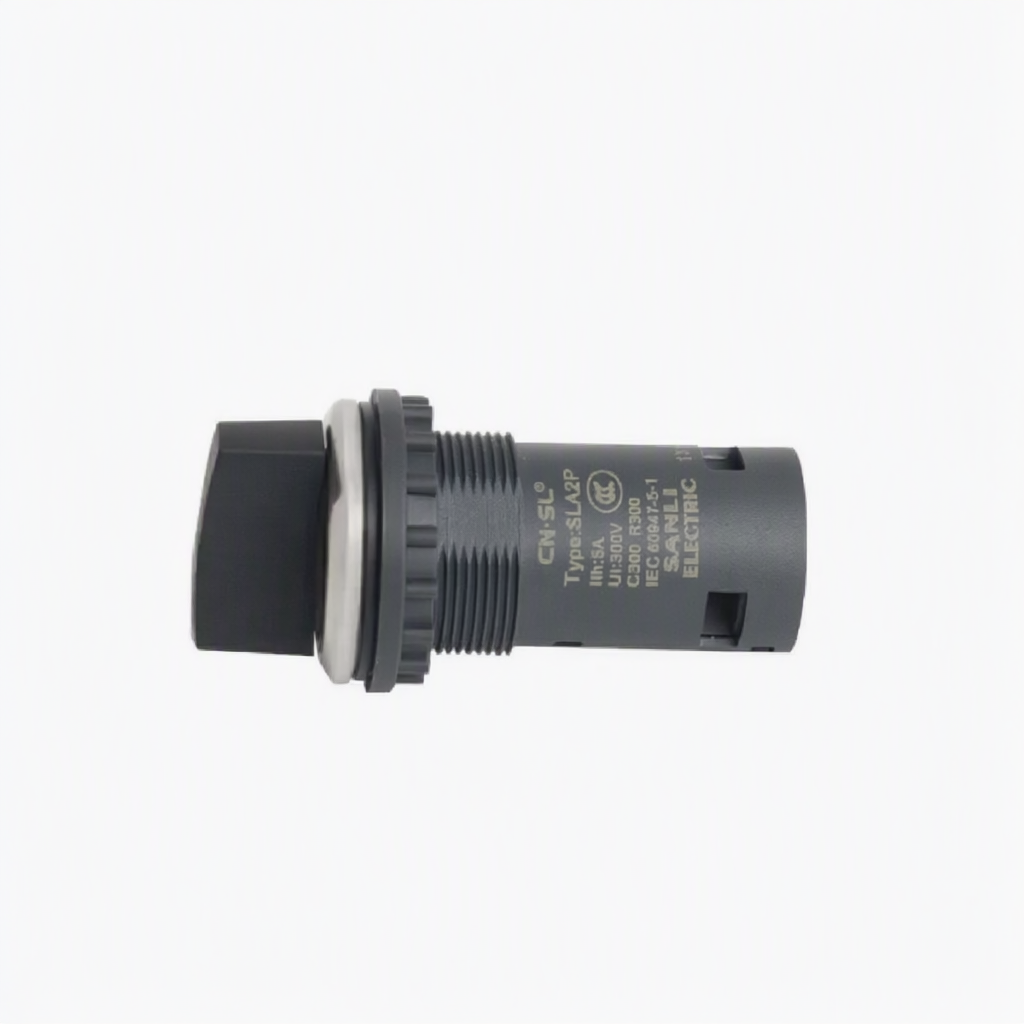

- Compact Space-Saving Architecture: Advanced compact barrel depth preserves substantial rear enclosure space, allowing dense multi-switch panel layouts.
- 2-Position & 3-Position Multi-Pole Control: Available in 2-position 90° stay-put (1NO/1NC, 2NO) and 3-position 45° selector configurations (2NO, 1NO+1NC, 2NO+2NC).
- IP65 Waterproof & Dustproof Protection: Precision front elastomer sealing ring protects against heavy water washdowns, cutting fluid spray, and industrial airborne particulate ingress.
- Structurally Separated NO/NC Contacts: Contact blocks are physically isolated and electrically insulated, enabling safe dual-pole operation across differing voltages.
- Self-Cleaning Silver-Plated Contacts: Dynamic sliding wipe contact geometry prevents carbon and oxidation buildup, ensuring instant electrical conduction.

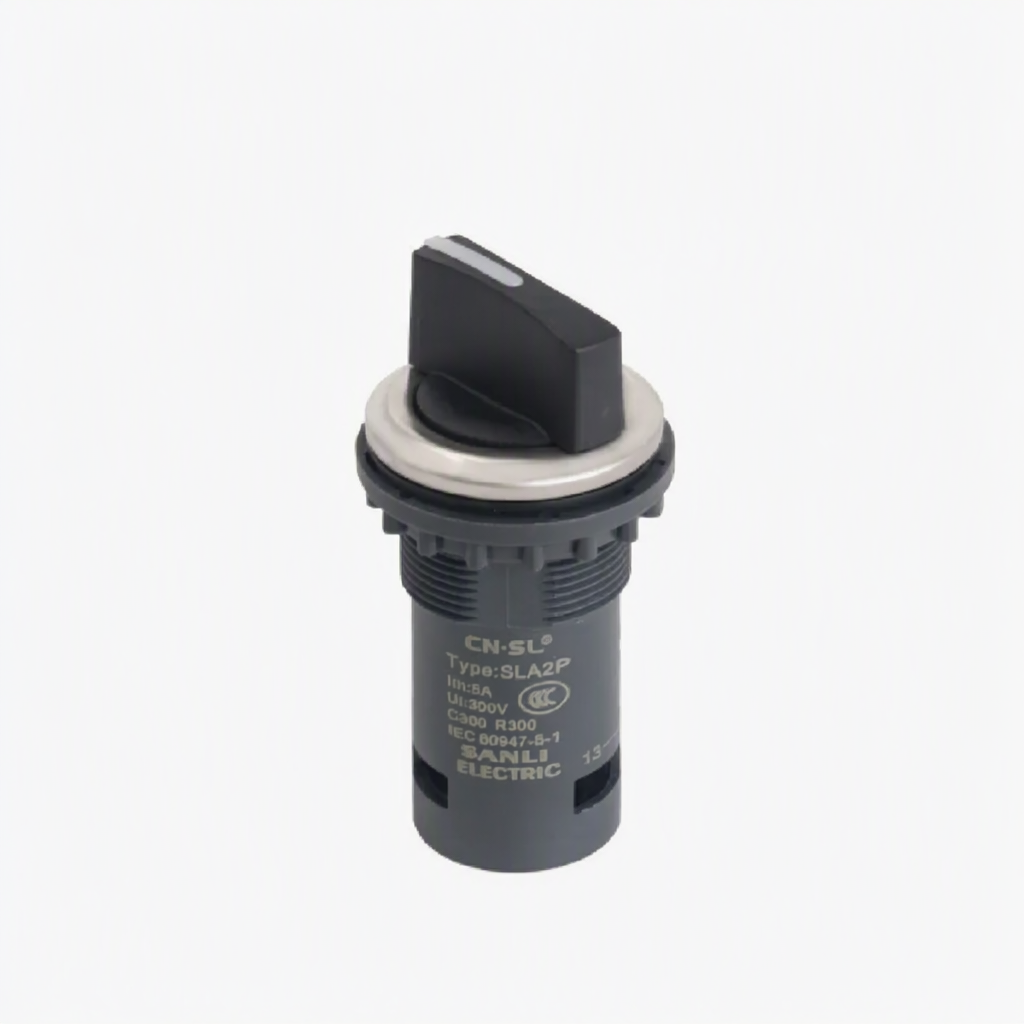

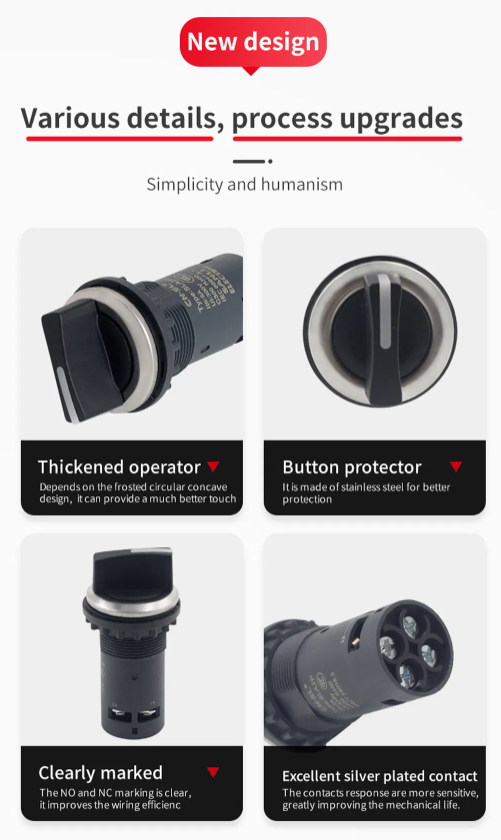

- Ergonomic Thickened Operator & Stainless Bezel: Frosted concave rotary knob with prominent white position indicator and stainless steel protective collar for impact resistance.
- Finger-Safe Combination Screw Terminals: Recessed captive screw wiring terminals with funnel guides provide IP20 touch safety and vibration-proof wire clamping.
Typical Industrial Applications
- Medical Devices & Diagnostic Instrumentation: Mode selection, power arming, and patient monitor control circuits requiring high tactile reliability and easy wipe-down sanitation.
- Industrial Automation & PLC Control Consoles: Auto/Manual, Hand/Off/Auto (HOA), and local/remote telemetry selection on main operator control panels.
- CNC Machinery & Metalworking Machine Tools: Spindle direction, feed-rate modes, and coolant pump operational selector switches.
- Electrical Distribution & Switchgear Panels: Voltmeter/ammeter phase selection, emergency override bypass, and circuit breaker trip/close interlocking.
- Electronic Communications & Server Infrastructure: Dual-feed backup power source transfer selection, HVAC blower mode switches, and alarm bypass controls.
Patents & Compliance
- European CE Declaration of Conformity: Certified compliant with Low Voltage Directive (2014/35/EU) and Electromagnetic Compatibility (2014/30/EU).
- China Compulsory Certification (CCC): Accredited under national low-voltage apparatus safety specification GB/T 14048.5 / IEC 60947-5-1.
- ISO 9001:2015 Quality Management Certified: Manufactured under continuous precision inspection and batch quality control protocols.
- IEC 60529 Ingress Protection IP65: Verified dust-tight and protected against water jets from any direction.
- Impulse Withstand Voltage Test: Rated shock withstand voltage verified at 2,500V (Ui = 300V).
