SLA6H series 22mm rotary selector switch with ergonomic long-handle operator and modular snap-together contact architecture.
Authorized distribution via SRE Pte. Ltd. Supplied with genuine CNSL / Sanli Electric factory documentation, standards compliance, and lot traceability.
SLA6H-XB 22mm Industrial Rotary Selector Switch (TÜV / CE / 660V / Modular Multi-Contact Blocks)
TÜV and European CE certified heavy-duty 22mm panel-mount rotary selector switch featuring an ergonomic long-handle lever, modular multi-stage contact system accommodating up to 6 contact blocks, 660V rated insulation, and self-cleaning silver-plated sliding contacts. Engineered for manufacturing machinery, motor control centers, and automation control consoles.
CNSL / Sanli Electric Engineering & Technical Overview
The SLA6H-XB series 22mm industrial rotary selector switch (CNSL / Sanli Electric) is a heavy-duty, high-performance control switch designed for standard 22mm (M22 / 22.5mm) control panel cutouts. Built in full compliance with GB/T 14048.5 and IEC/EN 60947-5-1 standards, the SLA6H series is engineered for AC 50/60Hz circuits up to 660V and DC circuits up to 440V, serving as an authoritative operator interface for manufacturing machinery, process automation, motor starters, and interlock systems.

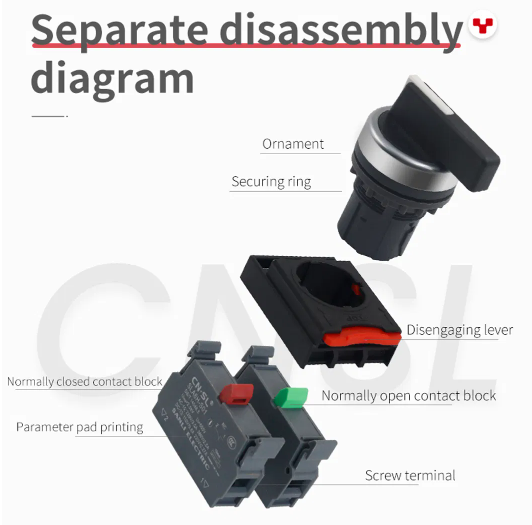

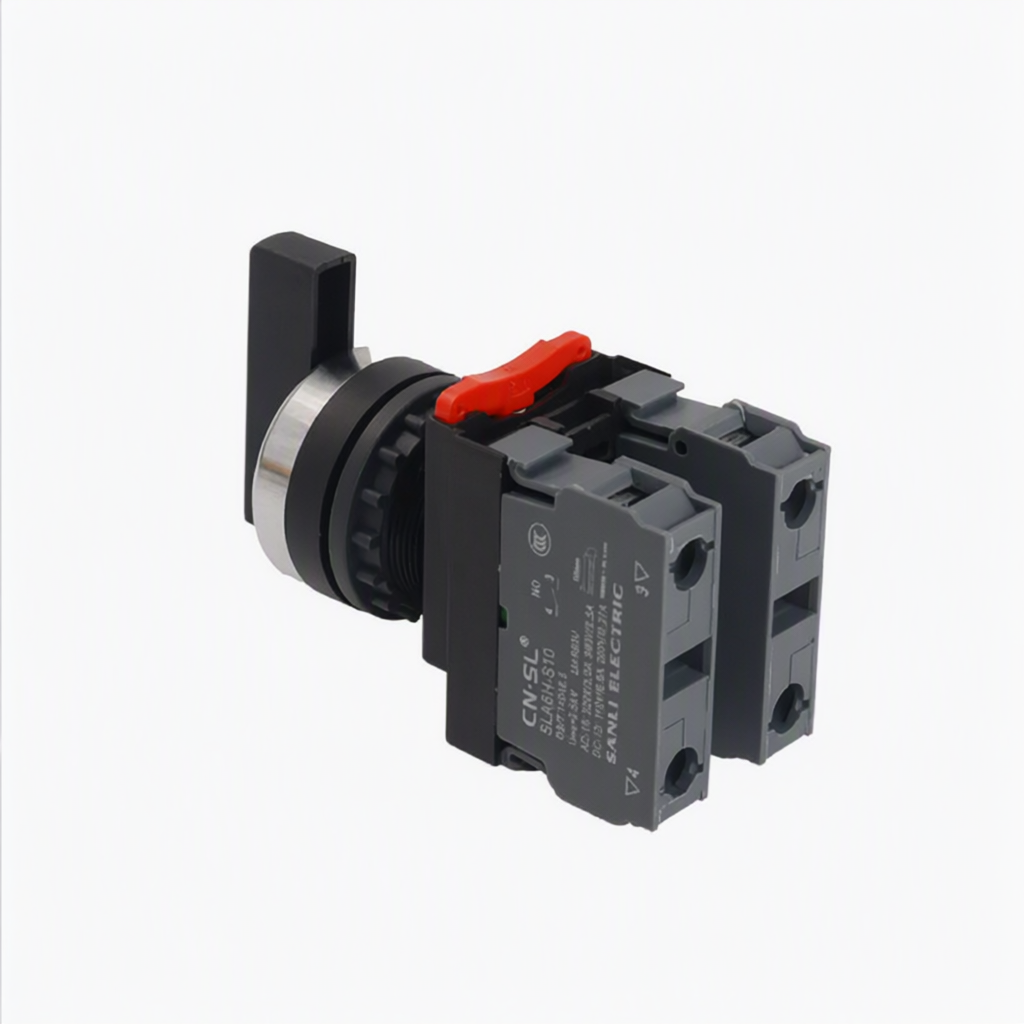

The switch features a modular multi-stage contact block architecture that delivers exceptional flexibility and scalability. Its three-tier modular carrier allows up to 6 contact blocks to be stacked and combined horizontally in three groups, accommodating complex multi-pole, multi-throw switching schemes while maintaining a compact footprint for space-constrained electrical enclosures. Each contact block is structurally segregated and electrically insulated, allowing independent poles to safely switch separate phases and different control voltages without risk of electrical crosstalk or flashover.

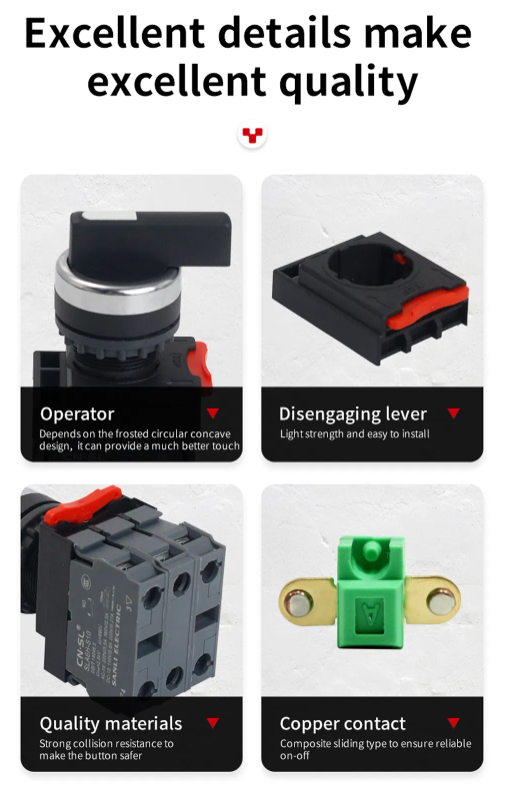

Inside each contact block, the dynamic and static contacts utilize a sliding wipe contact geometry with high-conductivity copper and heavy silver plating. This self-cleaning action automatically removes surface oxidation, particulate debris, and carbon buildup during every operation, guaranteeing ultra-low contact resistance and reliable conduction across severe duty cycles.

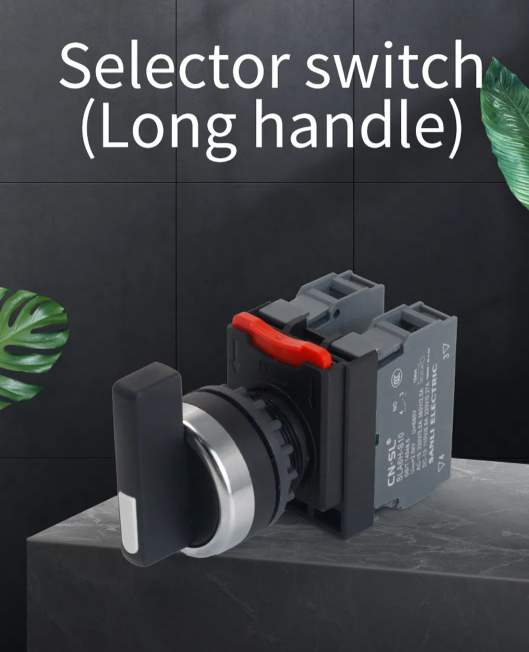

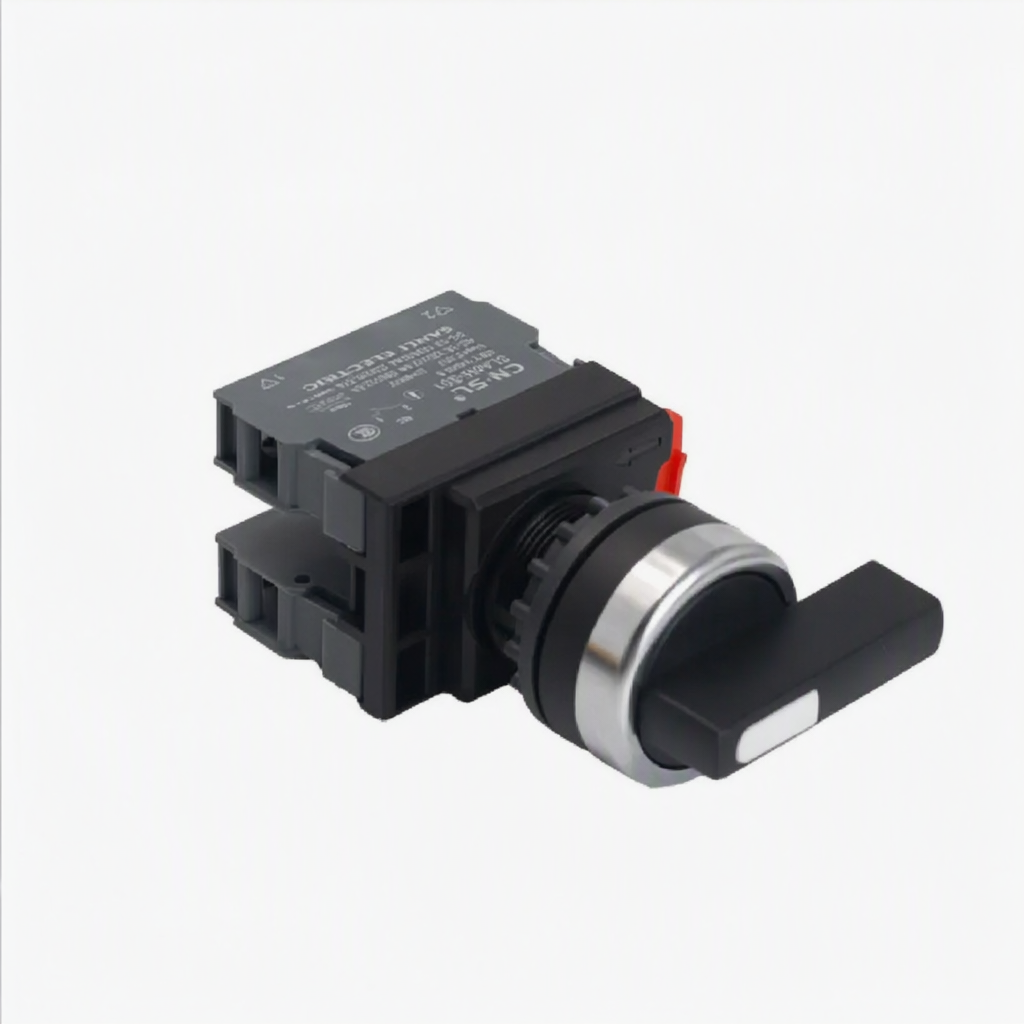

For operator ergonomics and clear status indication, the SLA6H-XB is equipped with an extended long-handle lever operator. It provides high mechanical leverage and distinct tactile detent feedback across 2-position (locking or momentary spring-return to center/left) and 3-position configurations (maintained, right spring-return, or momentary double return).

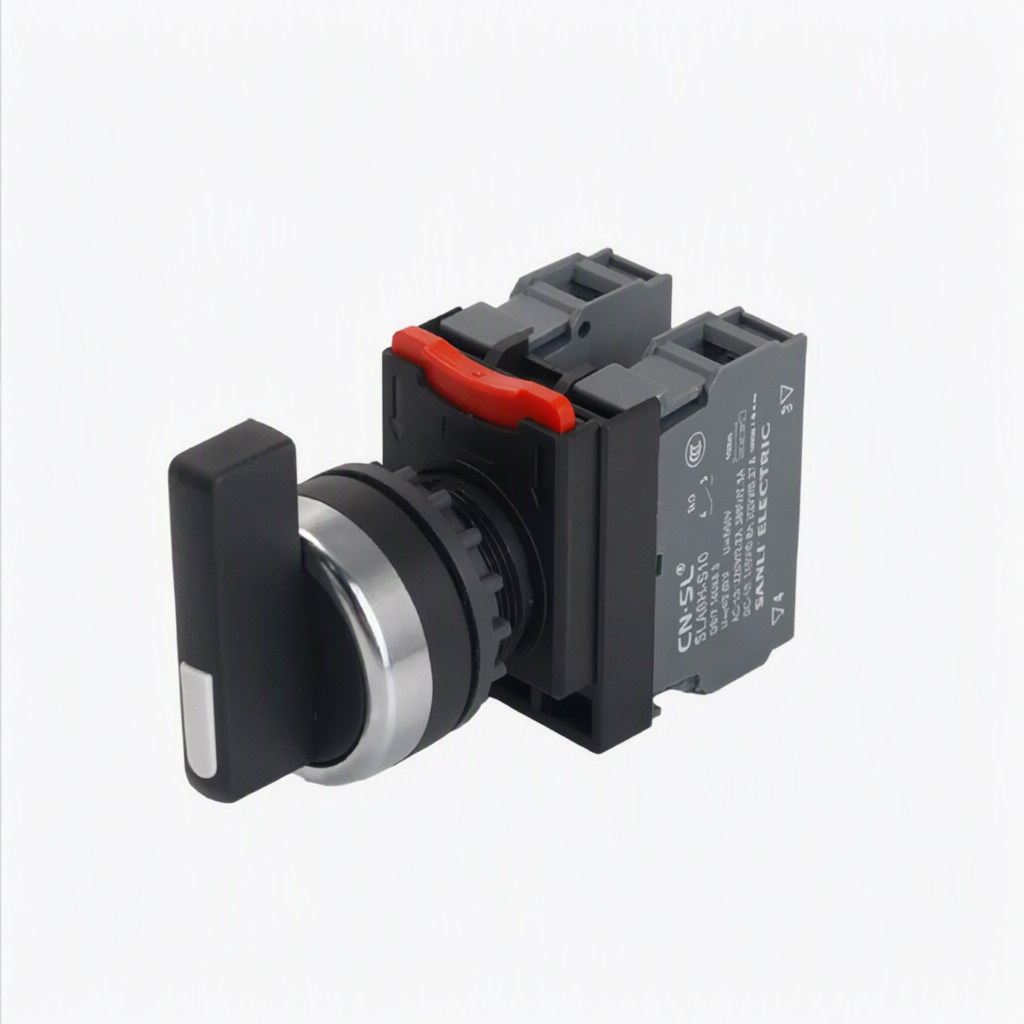

Wiring terminals feature a recessed finger-safe, anti-shock, and dust-resistant enclosure with combination Phillips/slotted clamp screws with screw-limiting and anti-drop retaining washers. Backed by TÜV Rheinland safety accreditation, European CE conformity (LVD & EMC), China Compulsory Certification (CCC), and ISO 9001 factory quality standards, the SLA6H-XB is built for demanding global industrial applications.
Key Engineering Highlights:
- TÜV Rheinland & European CE Certified: Officially tested and accredited under IEC/EN 60947-5-1 and GB/T 14048.5 for industrial control switchgear and machinery interlock systems.
- Heavy-Duty Modular Contact Architecture: Supports stacking up to 6 contact blocks in horizontal and tiered arrangements for complex multi-circuit control in compact panel enclosures.

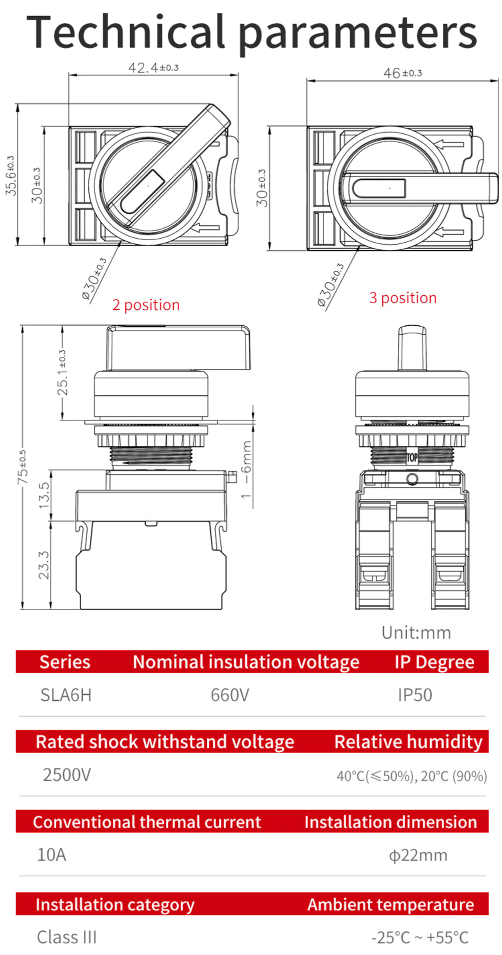

- High Voltage & Current Ratings: Rated nominal insulation voltage Ui 660V, conventional thermal current Ith 10A, and impulse withstand voltage up to 2500V.

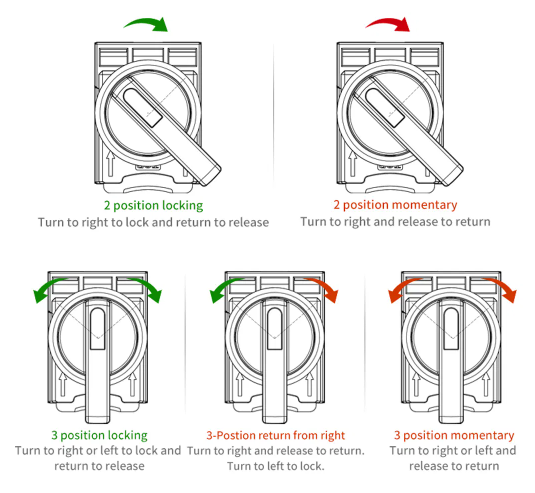

- Versatile 2-Position & 3-Position Switching: Available in 2-position 90° stay-put/momentary and 3-position maintained, right-return, and momentary double-return configurations.
- Self-Cleaning Sliding Contacts: Dynamic wiping contact geometry with silver-plated copper contacts eliminates oxide buildup and maintains pristine electrical continuity.

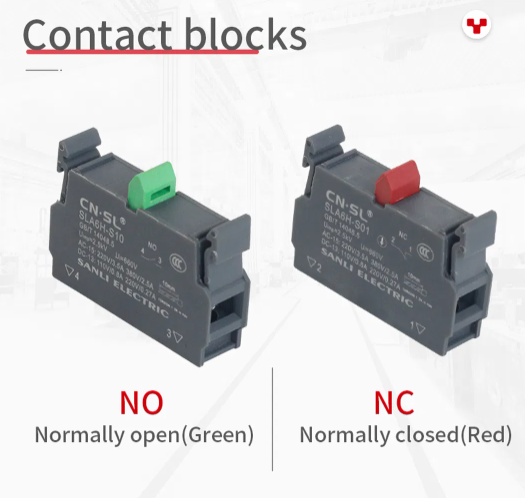

- Structurally Isolated NO & NC Blocks: Fully separated and insulated contact chambers (Green Normally Open / Red Normally Closed) allow simultaneous switching of different poles and phases.

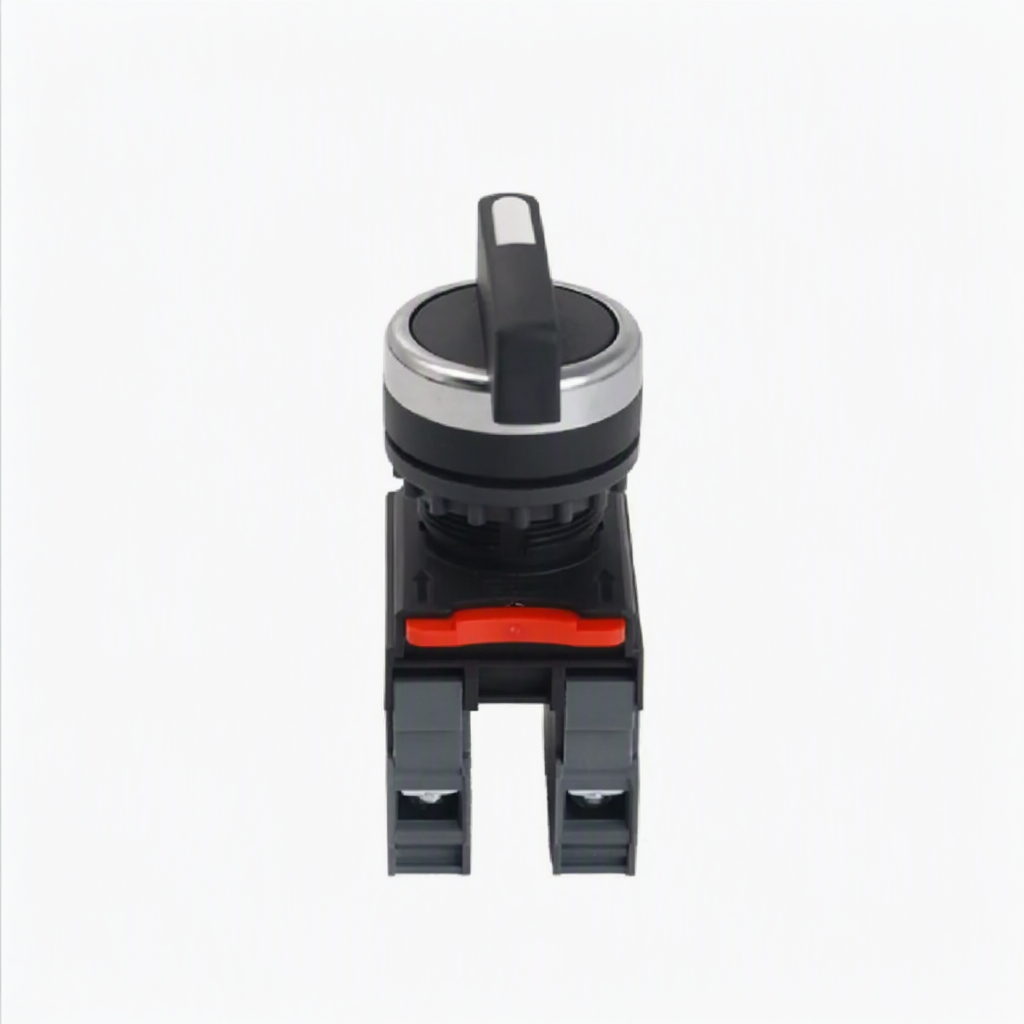

- Ergonomic Long-Handle Selector Head: Extended industrial lever provides superior leverage, positive detent tactile feedback, and effortless operation with heavy work gloves.
- Anti-Shock Hidden Terminals: Finger-safe recessed wire clamp terminals with screw-limiting and captive anti-falling combination screws for rapid and secure field wiring.
Typical Industrial Applications
- Industrial Manufacturing Machinery & Machine Tools: Mode selection (Manual/Auto/Jog), spindle control, and coolant pump switching on milling machines, lathes, and presses.
- Motor Control Centers (MCC) & Switchboards: Hand-Off-Auto (HOA) selector, local/remote control switching, and circuit breaker trip/close interlocks.
- Automated Production Lines & Conveyor Systems: Directional routing, speed selection, and interlock override controls across factory automation stations.
- Water Supply & Fluid Pump Control Stations: Dual-pump alternating duty selection, lead/lag pump transfer, and emergency bypass operation.
- HVAC & Commercial Air Handling Units: Fan speed stepping, heating/cooling mode changeover, and damper motorized actuator control consoles.
Patents & Compliance
- TÜV Rheinland Product Safety Certification: Verified and compliant with international safety standards for manufacturing machinery controls.
- European CE Declaration of Conformity: Full compliance with EU Low Voltage Directive (2014/35/EU) and Electromagnetic Compatibility Directive (2014/30/EU).
- China Compulsory Certification (CCC): Certified under national industrial low-voltage switchgear standard GB/T 14048.5.
- ISO 9001:2015 Quality Management System: Manufactured under rigorous multi-point batch inspection and quality control protocols.
- Ingress Protection IP50 / IP65: Dust-proof sealed front operator with high-grade anti-shock engineering plastic housing.
