TSP-CO Industrial Carbon Monoxide (CO) Transmitter & Staged Fan Controller
Industrial-grade electrochemical CO gas transmitter and demand-controlled ventilation (DCV) controller. Features a Japanese Figaro electrochemical sensor (>5-year life), selectable 0–500 ppm range, dual 5A relay outputs for staged or two-speed exhaust fan activation, 16-bit analog output (0–10V/4–20mA), RS-485 Modbus RTU, OLED display, and EN50291/UL2034 alarm presets.
SRE-Control Engineering & Technical Overview
The TSP-CO Series is an industrial-grade carbon monoxide transmitter and staged ventilation controller engineered specifically for underground parking facilities, multi-level garages, enclosed loading docks, and commercial building management systems (BMS/BAS). Powered by a world-class Japanese Figaro electrochemical CO sensing cell in a replaceable module architecture, it delivers exceptional measurement repeatability and long-term stability (±5% over 900 operating days).

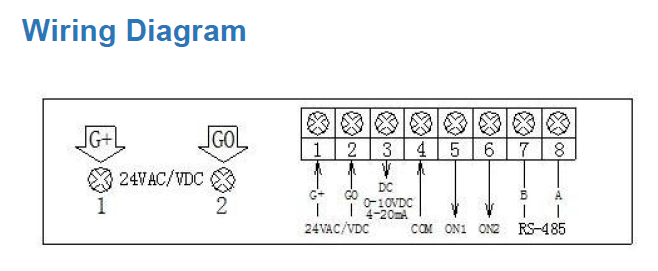

Designed for autonomous or networked demand-controlled ventilation (DCV), the TSP-CO incorporates up to two heavy-duty dry-contact relays (5A @ 230VAC / 30VDC resistive load) capable of direct staged switching of exhaust fans or dual-speed ventilation motors without requiring external interposing relays. A 16-bit DAC linear analog output (0–10 VDC or 4–20 mA selectable) and an RS-485 Modbus RTU interface (with 15kV anti-static ESD protection) provide comprehensive connectivity to centralized DDC controllers, SCADA platforms, and IoT gateways.
The unit features a crisp OLED screen providing real-time CO concentration, ambient temperature (-5°C to +50°C), and relative humidity readouts. For local safety indication, a three-color status LED (green normal flashing / red alarm threshold) and an internal audible buzzer alert onsite personnel in strict accordance with international standards, including European EN 50291, American UL 2034, and Chinese GB 15322 presets. Its robust flame-retardant PC/ABS enclosure (IP30) and zero-point calibration support ensure trouble-free maintenance across 30-meter detection radii.

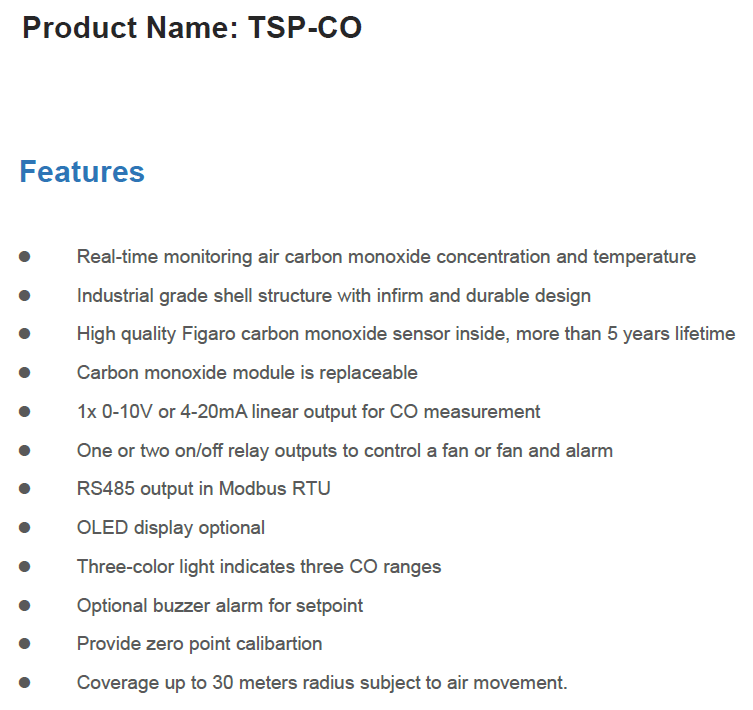

Key Engineering Highlights:
- Figaro Electrochemical Sensing: Premium Japanese Figaro sensor cell with field-replaceable module architecture and >5-year service life
- Wide Field-Selectable Ranges: 0–100 ppm (default), 0–200 ppm, 0–300 ppm, or 0–500 ppm measurement spans
- Staged & Dual-Speed Fan Relays: Up to 2x independent 5A relay dry contacts (230VAC/30VDC) for direct multi-stage exhaust fan control
- 16-Bit Proportional Analog Output: 1x 0–10VDC or 4–20mA linear loop for seamless VFD damper and BMS analog control
- RS-485 Modbus RTU Connectivity: Standard 9600 bps baud rate with 15kV ESD anti-static protection for building automation networks
- Integrated Temperature Sensing: Built-in capacitive temperature sensor measuring -5°C to +50°C (±0.5°C accuracy)
- High-Contrast OLED Display: Real-time visual monitoring of CO ppm concentration, ambient temperature, and humidity
- Three-Color LED & Buzzer Alarm: Visual flashing indicator and audible alarm buzzer with EN 50291, GB 15322, and UL 2034 selectable presets
- Zero-Point Field Calibration: Convenient push-button zero-point recalibration for long-term drift-free accuracy
- Extensive Area Coverage: Effective monitoring radius up to 30 meters subject to local airflow conditions
- Energy-Efficient 24V Supply: 24 VAC / 24 VDC universal input with low 2.8W power consumption in a fireproof PC/ABS housing
Typical Industrial Applications
- Underground Parking Lots & Multi-Level Garages: Real-time CO monitoring and demand-controlled exhaust fan staging
- Commercial Building BMS Integration: Direct Modbus RTU connection to central DDC panels and SCADA energy monitoring
- Loading Docks & Freight Logistics Bays: Autonomous fan activation and audible buzzer alarms for diesel/petrol vehicle emissions
- Vehicle Inspection & Maintenance Tunnels: Worker safety protection with OLED ppm readout and staged dual-speed fan control
- Enclosed Bus Interchanges & Fleet Depots: Large-scale networked deployment with up to 30-meter detection coverage radius
- Green Building IAQ & DCV Systems: Eliminating continuous fan runtime to slash building ventilation energy costs
Patents & Compliance
- CE-EMC Certified Design Standard (Industrial Electromagnetic Compatibility)
- EN 50291 European Standard (Electrical Apparatus for the Detection of Carbon Monoxide)
- UL 2034 American Standard (Single and Multiple Station Carbon Monoxide Alarms)
- GB 15322 Chinese National Standard (Combustible and Toxic Gas Detectors)
- ISO 9001:2015 Quality Management Certified Manufacturing Facility
- 15kV Anti-Static Surge & ESD Protection on RS-485 Communication Ports
